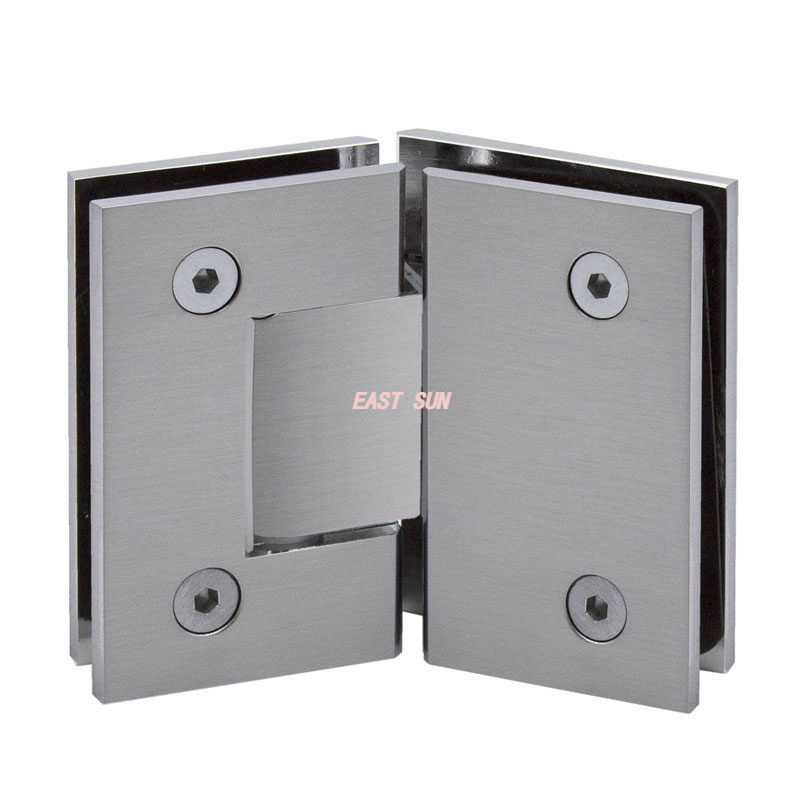

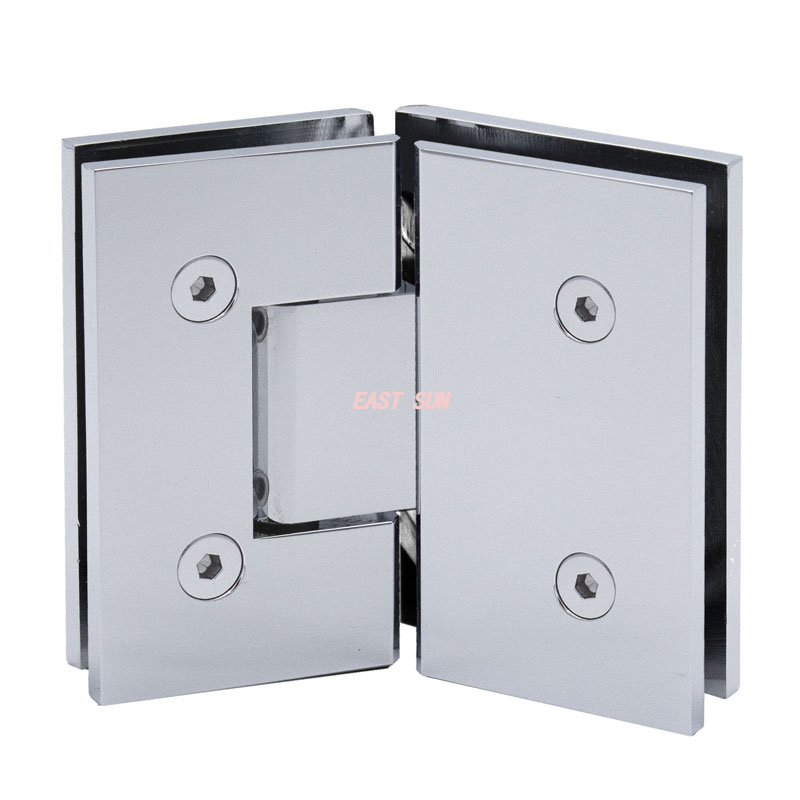

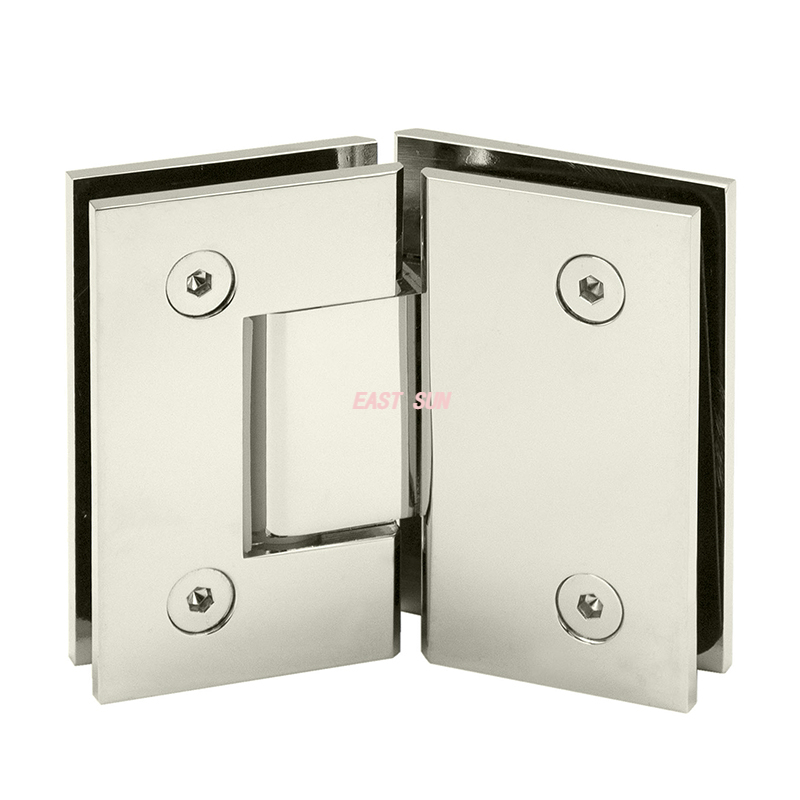

ESH-202
135°
chrome satin Brass
hinge
| Quantity: | |
|---|---|
PRODUCT OVERVIEW:
With high-quality stainless steel spring
Available in Several Beautiful Finishes
One Year Warranty
135 degree glass to glass
Use Monolithic Tempered Glass
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Straight Edge Straight Corner Design
More Details:
Catalog Number: | ESH-202 |
Adjustable | NO |
Finish/Color: | PVD Gold, Satin Brass,Brushed Bronze |
Height: | 50 mm |
Width: | 100 mm |
| Glass To Glass Angle (Degrees) | 135 |
Material: | Brass |
Maximum Door Weight - 2 Hinges (Pounds) | 80 |
Maximum Door Weight - 3 Hinges (Pounds) | 120 |
Maximum Door Width - 2 Hinges (Inches) | 28 |
Maximum Door Width - 3 Hinges (Inches) | 32 |
Mounting Type | Glass to Glass |
Self-Centering | Yes |
Series | ESH |
Other Finishes:
|
Additional Product Information:
STANDARD REVERSIBLE SPRING: Each ESH Series Hinges with high-quality stainless steel spring
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 36" (914mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model,
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimension
