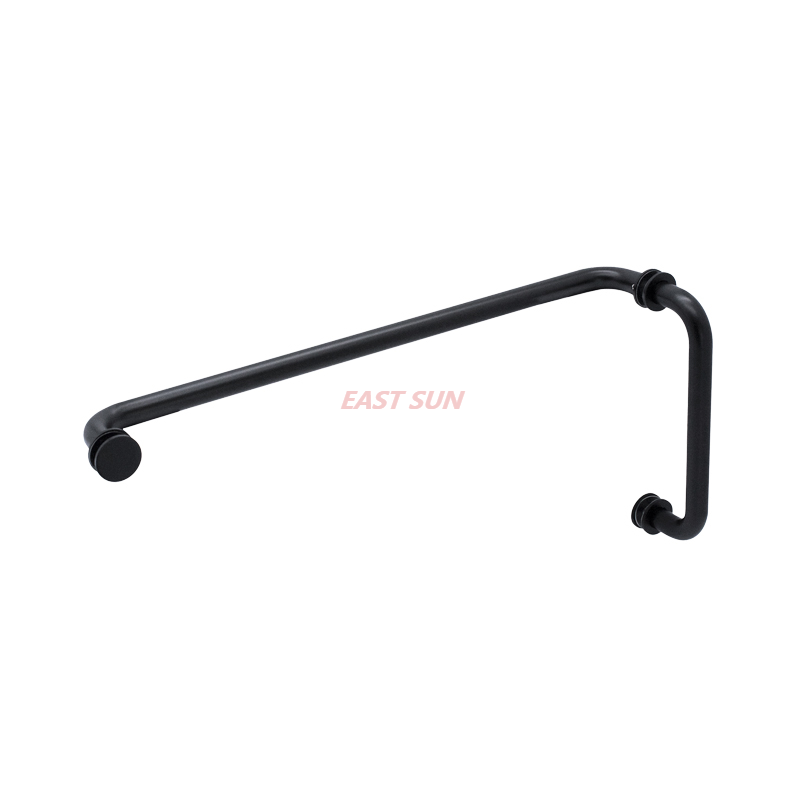

18" Towel Bar with 6" Pull Handle Combination Set

Product Overview
1. 3/4" (19 mm) Diameter Brass Tubing
2. Fits 1/4" to 1/2" (6 to 12 mm) Thick Glass
3. Use Monolithic Tempered Glass

Pull Handle and Towel Bar Sets come with all the hardware needed for installation. They are constructed of heavy brass tubing. Each set consists of one towel bar, one pull, and matching finish metal washers. They fit glass thicknesses from 1/4" to 1/2" (6 to 12 mm).

SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing; 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
24" Towel Bar = 24" (610 mm)

AVAILABLE SIZES:
Cat. No. SDP6TB12 6" Pull/12" Towel Bar
Cat. No. SDP6TB18 6" Pull/18" Towel Bar
Cat. No. SDP6TB24 6" Pull/24" Towel Bar
Cat. No. SDP12TB24 12" Pull/24" Towel Bar
  • PH-049

  • chrome  satin  black  Brass  Stainless steel  Zinc  polish nickel  brush bronze  gold  SSS  PSS

  • Stainless steel  SSS  PSS

  • handle

Availability:
Quantity:

Product Overview
1. 3/4" (19 mm) Diameter Brass Tubing
2. Fits 1/4" to 1/2" (6 to 12 mm) Thick Glass
3. Use Monolithic Tempered Glass


Pull Handle and Towel Bar Sets come with all the hardware needed for installation. They are constructed of heavy brass tubing. Each set consists of one towel bar, one pull, and matching finish metal washers. They fit glass thicknesses from 1/4" to 1/2" (6 to 12 mm).


SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing; 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
24" Towel Bar = 24" (610 mm)

AVAILABLE SIZES:
Cat. No. SDP6TB12 6" Pull/12" Towel Bar
Cat. No. SDP6TB18 6" Pull/18" Towel Bar
Cat. No. SDP6TB24 6" Pull/24" Towel Bar
Cat. No. SDP12TB24 12" Pull/24" Towel Bar
