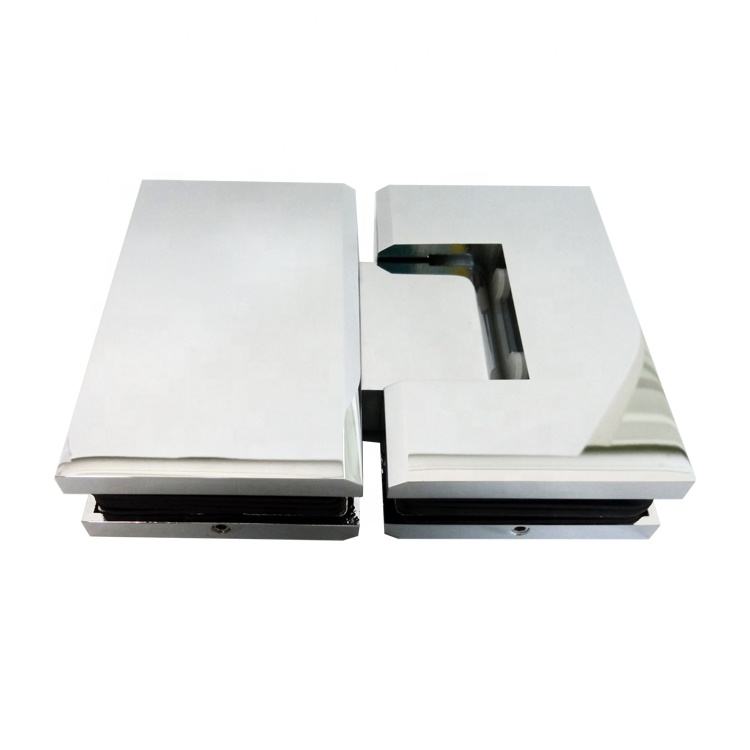

ACH-203
180°
chrome satin Brass
hinge
Availability: | |
---|---|
Quantity: | |
· Adjustable to Any Angle up to 90 Degree without Having to Take Door Down
· Available in Several Beautiful Finishes
· 1 Year Warranty
· Use Monolithic Tempered Glass
· Adjustable 180 Degree Glass-to-Glass
More Details:
Catalog Number: | ACH-203 |
Adjustable | YES |
Finish/Color: | Polished Chrome |
Height: | 55mm |
Width: | 90mm |
Glass To Glass Angle (Degrees) | 180 |
Material: | Brass |
Maximum Door Weight - 2 Hinges (Pounds) | 80 |
Maximum Door Weight - 3 Hinges (Pounds) | 120 |
Maximum Door Width - 2 Hinges (Inches) | 28 |
Maximum Door Width - 3 Hinges (Inches) | 32 |
Mounting Type | glass to glass |
Self-Centering | · Yes |
Series | · ACH |
Other Finishes:
|
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position)
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
