Glass Thickness Range: \5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included) Material: Stainless Steel Maximum Sliding Door Size: Do Not Exceed Either 37" (940 mm) Wide or 84 Pounds (38 kg) Glass Fabrication: Holes Required in Both Doors
Stainless Steel Deluxe180 Degree SERENITY Systemframlessglass Sliding ShowerDoor With Rollers

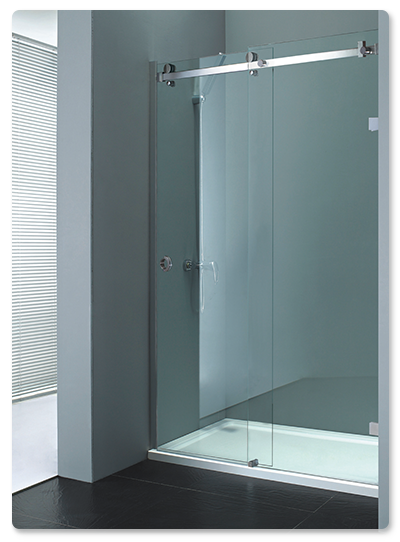

One sliding and one fixed panel make the 180 Degree Standard Kit beautiful and practical.
Fixed and Sliding Glass Panels are Reversible for Installation
Specially designed roller bearings allow for quiet and easy opening and closing of the door.
The use of minimal hardware provides a frameless look that gives the enclosure an almost floating appearance.

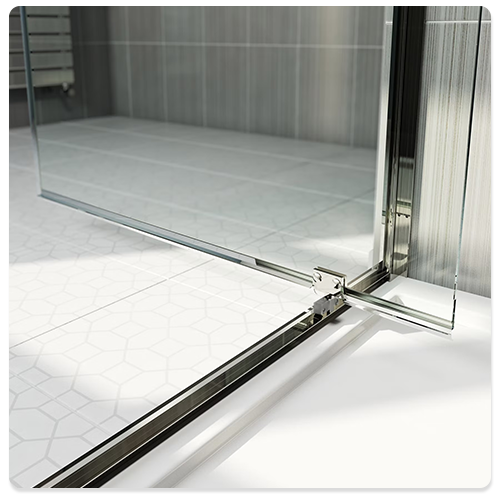

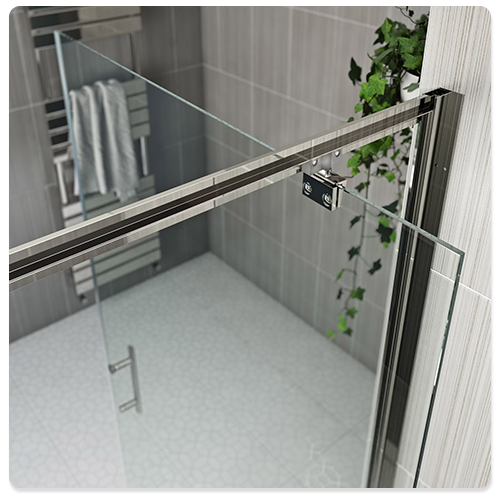

The unique roller system operates above and below the header bar spanning the top of the enclosure.
The circular shaped Header and the round Rollers of the Crescent Series Sliding Door System are the perfect complement to each other. They help provide a luxurious sliding shower door system and a soft décor.
The use of minimal hardware lends itself to the popular modern sliding shower door systems by showing more glass, and less hardware.
These quality Rollers assure quiet door travel, and make the door easy to slide.
The Crescent Series Sliding System allows that the fixed and sliding panels are reversible for installation as desired.

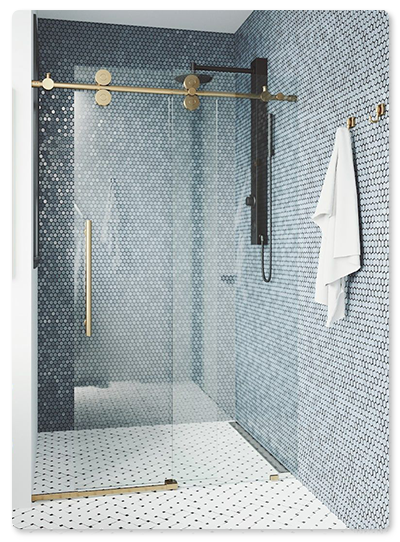

The Crescent Series Sliding Door System is available in a choice of polished stainless steel, brushed stainless steel, matte black or the new popular Brass stain and Brushed Brass finish
Product Information: STANDARD 180 DEGREE KIT INCLUDES:

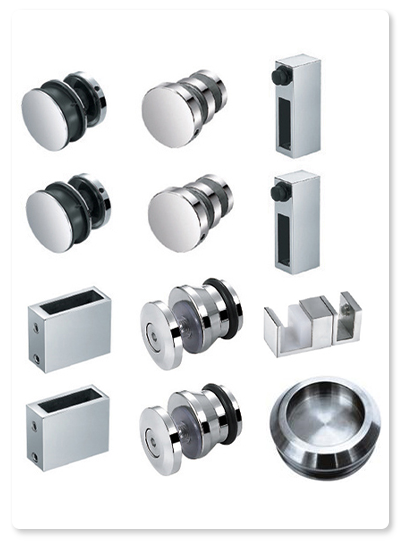

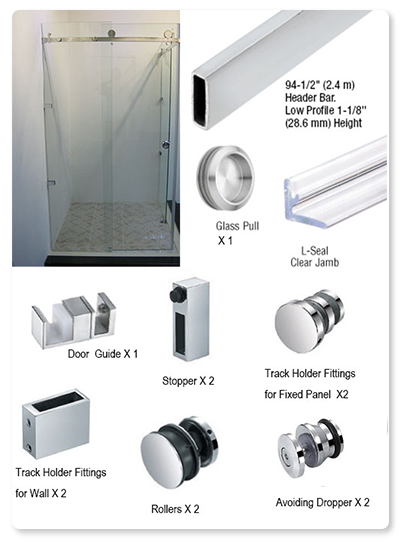

1 - 78" (1981 mm) Length of Header Bar 4 - Rollers 1 - Stopper 2 - Wall Mount Fittings 2 - Track Holder Fittings for Fixed Panel 1 - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass) 2 - 40" (1016 mm) Bottom Sweeps with Drip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm) 1 - 80" (2032 mm) Clear L-Jamb NOTE: Customer to supply choice of Handle or Knob for door,
Material: Stainless Steel Glass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not Included Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight. Glass Fabrication Required for Both Door and Fixed Panel.
Frameless glassshowerdoors with HINGES series
Standard side mounting wall mount and glass-to-glass hinges series
The Frameless glass shower doors Series of professional Hinges is able to accommodate 1/2", 3/8", or 5/16" (12, 10, or 8 mm) glass.
A variety of seven styles gives design flexibility, including three different Wall Mount and four different Glass-to-Glass types.
Frameless Glass Shower door Hinges are made of solid brass with all moving parts (pins and springs) in stainless steel.
Frameless Glass Shower door Hinges offer the choice of Standard Model
Product Information: SPECIFICATIONS:
Glass Thicknesses: 1/2", 3/8", or 5/16" (12, 10, or 8 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0˚ closing position Construction: Solid Brass Hinge Swings: Approximately 90º in and 90º out Closing Type: Self-Centering when within 15º of closed position Cut-Out Required: requires cut-out for door and two holes for fixed panel Includes: Gaskets, Screws, and Glass Fabrication Dimensions

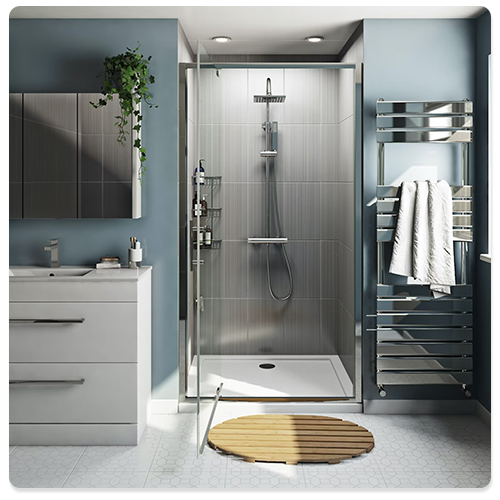

Frameless glass shower door with hinges series Top and Bottom Pivot Hinges Series
Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections.
Pivot Hinges Series are self-centering, with four springs for maximum retention strength.
The pivot Series is adaptable to our Header System for shower enclosures not going all the way up to the ceiling
Glass Thicknesses: 3/8" or 5/16" (10 or 8 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. PTD-201 can be mounted floor and ceiling, or floor and header Construction: Solid Brass Hinge Swings: Full Rotation Closing Type: Self-Centering when within 15º of closed position Cut-Out Required:PTD-210 & PTD-310 Left and Right Hand Models require Cut-Out for Hinge and Hole for Clamp. Includes: Gaskets, Screws, and Glass Fabrication Dimensions
