Glass shower doors add a touch of elegance and modern style to any bathroom. The key to their smooth and safe operation lies in their hardware, specifically the glass shower door hinges. These small but mighty components bear the weight of the glass and ensure the door opens and closes seamlessly for years. Whether you're installing a new door or adjusting an existing one, understanding how these hinges work is crucial.
This guide will walk you through everything you need to know about glass shower door hinges. We will cover the steps for installing a new hinged glass shower door and the process for adjusting a pivot hinge to fix alignment issues. With the right tools and knowledge, you can ensure your shower door functions perfectly.
Before diving into installation or adjustment, it's helpful to recognize the different types of shower glass door hinges available. The two most common types are pivot hinges and side-mount hinges.
Pivot Hinges: These are installed at the top and bottom of the shower door, allowing it to pivot from a single point. This creates a clean, minimalist look and is a popular choice for frameless designs. They are excellent for heavier doors.

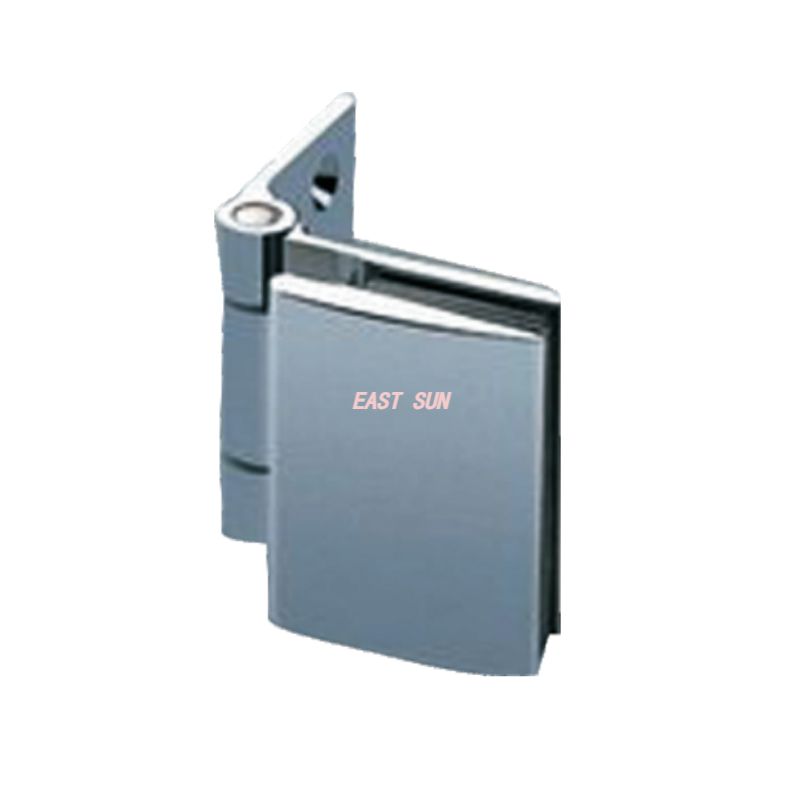

Side-Mount Hinges (Wall-to-Glass): These are mounted on the side of the door and attach directly to an adjacent wall or fixed glass panel. They function like a standard door hinge and are also very common in modern bathrooms.
This article will focus primarily on the pivot hinge, as its adjustment and installation process can be more detailed.
Installing a new glass shower door can be a rewarding DIY project. Proper installation of the glass shower door hinges is the most critical part of the process to ensure safety and functionality. Follow these steps for a secure and professional-looking result.
Having everything you need on hand before you start will make the process much smoother.
Tools & Materials | Description |
|---|---|
Tape Measure | For accurate measurements of the opening and door. |
Level | To ensure the door is perfectly plumb (vertically straight). |
Power Drill & Bits | For drilling pilot holes into the wall or shower threshold. |
Screwdrivers | A set including Phillips and flat-head types. |
Pencil or Marker | To mark drilling locations. |
Caulking Gun & Silicone Caulk | To seal edges and prevent water leaks. |
Shims or Spacers | To hold the glass door in place during installation. |
Safety Glasses & Gloves | To protect yourself during the process. |
A Helper | Glass doors are heavy and fragile; an extra set of hands is essential. |
Precision is key. Use your tape measure to determine exactly where the top and bottom pivot hinges will be located.
Consult the Manual: Your hinge for glass shower door kit will come with specific instructions. Follow the manufacturer's recommended measurements for placement.
Mark the Bottom Hinge: Place the bottom pivot hinge bracket on the shower curb or floor. Mark the screw holes with a pencil.
Mark the Top Hinge: Use a level and a plumb line to ensure the top hinge position is directly above the bottom one. Mark its screw holes on the top of the shower frame or wall.
With your locations marked, you can now attach the hinge components.
Drill Pilot Holes: Use a drill bit slightly smaller than your screws to drill pilot holes at the marked locations. If drilling into tile, use a specialized tile drill bit to prevent cracking.
Install Wall Anchors: If your wall is drywall or tile over drywall, insert wall anchors into the pilot holes to provide a secure mounting point.
Attach the Hinge Plates: Screw the pivot hinge plates securely into place. The bottom plate will be on the threshold, and the top plate will be attached to the header or wall.
Now it’s time to bring in the glass door.
Attach Hinge Components to the Door: Your shower glass door hinges will have a component that fits into pre-drilled notches in the glass itself. Carefully attach these sections to the top and bottom of the door according to the manual.
Position the Door: With your helper, lift the glass door. Place shims or spacers on the threshold to create the correct clearance (usually 1/4 to 1/2 inch).
Align the Hinges: Carefully guide the door so the hinge component on the bottom of the door rests inside the pivot plate you installed on the threshold. Then, align the top hinge component with the top plate.
With the door in place, the final steps involve securing it and sealing it.
Connect the Pivot Pin: Insert the pivot pin through the top plate and into the hinge component on the door. This locks the door in place. Tighten any set screws to secure the pin.Test the Door: Gently swing the door open and closed to check its movement. It should move smoothly without catching or dragging.
Seal the Edges: Apply a bead of silicone caulk along the stationary edges of the shower enclosure to create a watertight seal. Do not apply caulk to the bottom of the swinging door.
Allow Curing: Let the caulk cure for at least 24 hours before using the shower.
Over time, a glass shower door might sag or become misaligned, causing it to scrape the floor or not close properly. Adjusting the pivot hinge can usually fix this. This is a common maintenance task for shower glass door hinges.
First, determine what needs adjusting. Does the door sag on one side? Is there an uneven gap at the top or bottom? Is it difficult to close? Knowing the issue will help you make the right adjustment.
Most pivot hinges have adjustment screws hidden under a cover plate or within the hinge mechanism itself.
Locate the Pivot Hinge: You will be working with both the top and bottom pivot hinges.
Remove Cover Plates: If there are decorative cover plates, gently pry them off with a flat-head screwdriver to expose the screws.
Loosen Set Screws: You will likely find a few set screws. Do not remove them completely; just loosen them enough to allow the door to be moved. You may need an Allen wrench for this.
With the screws loosened, you and a helper can carefully reposition the door.
For a Sagging Door: Have your helper lift the handle side of the door slightly to make it level. While they hold it in position, tighten the set screws on the top and bottom hinges. This will lock the door in its new, corrected alignment.
For Vertical Alignment: Some pivot hinges allow for vertical adjustment. Loosening specific screws may let you raise or lower the entire door slightly. This is useful if the door is dragging on the threshold.
For In-and-Out Alignment: If the door isn't sitting flush when closed, some hinges allow for minor adjustments inward or outward. Loosen the appropriate screws, push or pull the door into the correct closed position, and retighten.
After making an adjustment, it's important to test your work.
Tighten Screws: Once you are satisfied with the door's position, tighten all the set screws firmly but be careful not to overtighten.
Check the Swing: Open and close the door several times to ensure it moves smoothly and closes correctly. Check that the gaps are even.
Replace Cover Plates: Snap the decorative cover plates back into place.
A: Signs that your glass shower door hinges need replacement include visible rust or corrosion, creaking or grinding noises during operation, and difficulty keeping the door aligned even after multiple adjustments. If the hinge is cracked or broken, it must be replaced immediately for safety.
A: It is highly recommended to replace hinges in pairs (or all of them if there are more than two). Hinges wear out at a similar rate, and replacing only one can put uneven stress on both the new and old hardware, leading to premature failure.
A: The weight capacity depends on the hinge's model and manufacturer. Standard hinges typically support around 80-120 pounds per pair. Always check the specifications of your chosen hinge to ensure it can safely support the weight and size of your glass door.
A: To maintain your hinges, wipe them dry after each use to prevent water spots and mineral buildup. For cleaning, use a mild soap and water solution with a soft cloth. Avoid abrasive cleaners or harsh chemicals, as they can damage the finish.
The quality of your glass shower door hinges directly impacts the safety, longevity, and appearance of your shower. Using subpar hardware can lead to sagging, misalignment, and potential safety hazards. For a project as important as this, investing in high-quality, durable hardware is non-negotiable.
