A beautiful glass shower door can transform your bathroom, making it feel more open and modern. The key to its function and style lies in a small but mighty component: the shower door hinge. Whether you're installing a new frameless hinged shower door or adjusting an existing one, understanding these mechanisms is crucial for a perfect, long-lasting setup. This guide will walk you through everything you need to know about shower door hinges. We’ll cover the difference between hinge and pivot doors, provide step-by-step installation instructions, and show you how to make precise adjustments. By the end, you'll have the confidence to manage your glass shower door project from start to finish.
When choosing a glass shower door, one of the first decisions you'll make is between a standard hinge and a pivot hinge. While both allow the door to swing open, they function differently and offer distinct aesthetic and practical benefits. Understanding these differences will help you select the right option for your bathroom layout and design preferences.

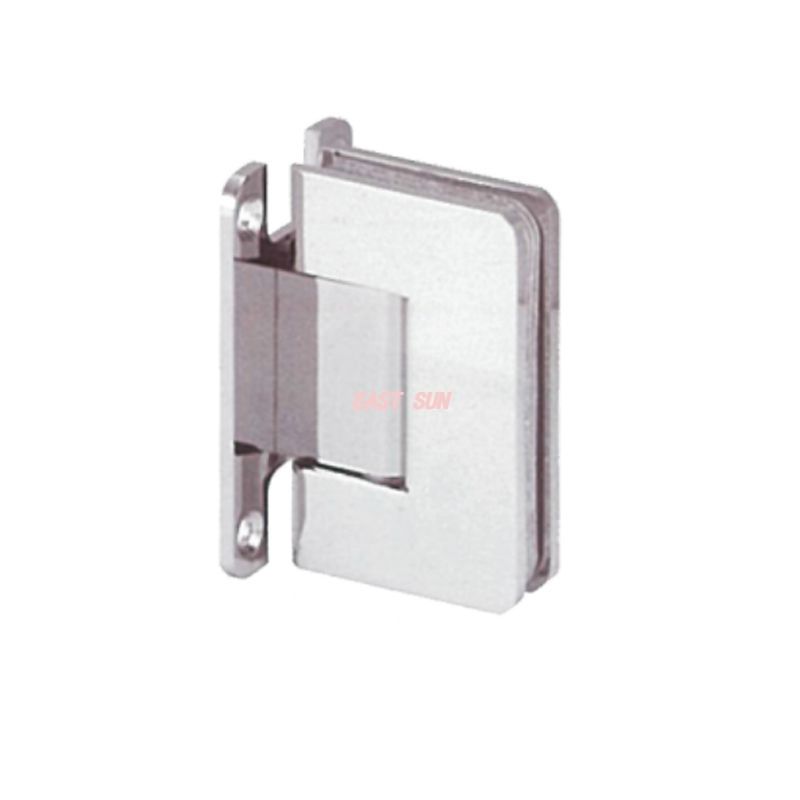

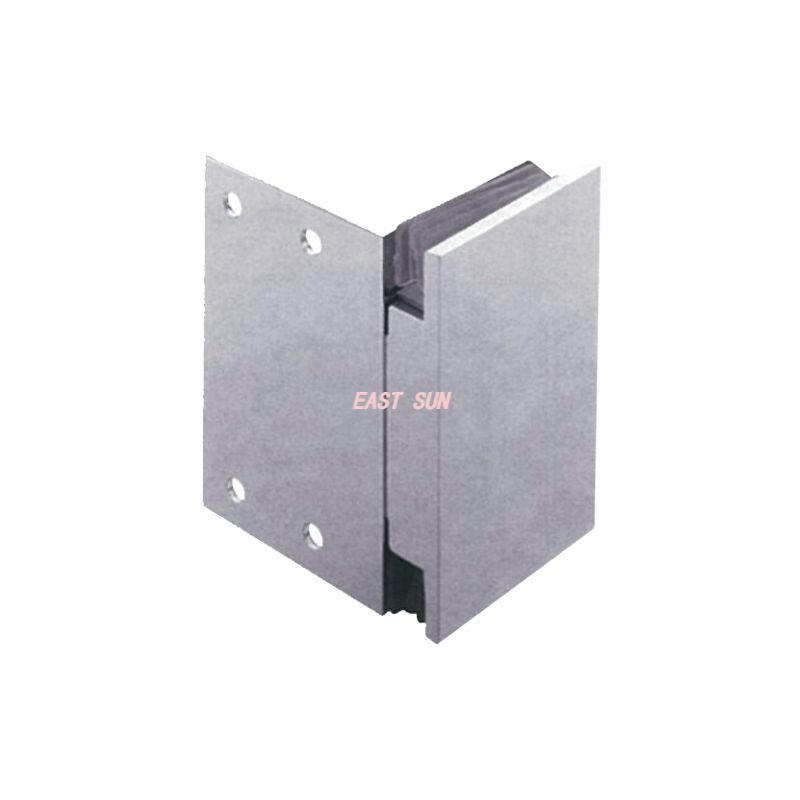

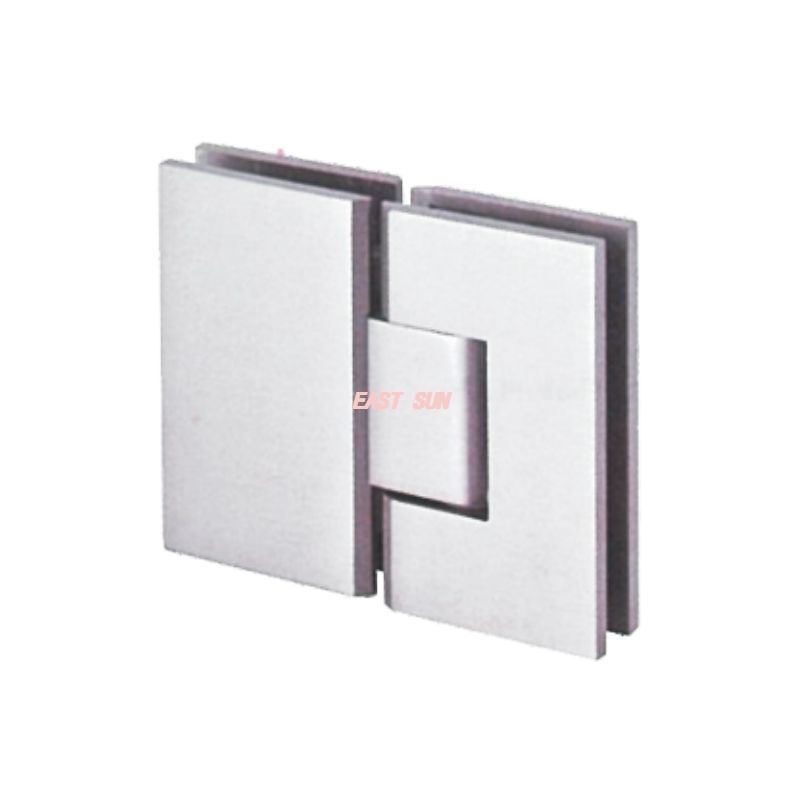

A standard shower door hinge operates much like the hinges on any other door in your home. They are typically mounted on one side of the glass panel and attach directly to a wall or an adjacent fixed glass panel. This allows the door to swing fully open, often up to 180 degrees, providing a wide and unobstructed entryway. These are common for a frameless hinged shower door, where the hardware is minimal and the focus is on the glass.
On the other hand, a pivot shower door hinge is mounted at the top and bottom of the door, either on the very edge or slightly inset from the side. This creates a pivot point on which the door swings. Because a portion of the door swings into the shower enclosure, pivot doors require less outward clearance, making them an excellent choice for smaller bathrooms where space is limited.
Feature | Standard Hinge Shower Door | Pivot Hinge Shower Door |
|---|---|---|
Mounting Location | Side of the door, attached to a wall or fixed glass panel. | Top and bottom of the door frame or glass panel. |
Swing Action | Swings outward (or inward) from the side like a regular door. | Rotates on a central or offset pivot point. |
Clearance Needed | Requires full door-width clearance in front of the shower. | Requires less outward clearance as part of the door swings inward. |
Typical Use | Ideal for larger bathrooms and creating a wide opening. | Great for smaller bathrooms or tight spaces. |
Aesthetics | Offers a classic, clean look for a frameless hinged shower door. | Provides a modern, minimalist appearance. |
Ultimately, the choice between standard and pivot glass shower door hinges depends on your bathroom's layout, your desired aesthetic, and how you need the door to function within the space.
Installing a hinged glass shower door is a project that requires precision and care, but it's manageable with the right tools and a systematic approach. A successful installation ensures your door hangs straight, swings smoothly, and remains secure for years. Below are the general steps for installing a frameless hinged shower door.
Gather Your Tools: You'll need a tape measure, a level, a pencil, a drill with appropriate bits for tile or fiberglass, silicone sealant, shims, and safety glasses.
Prepare the Area: Ensure the shower curb and walls are clean, dry, and level. Any imperfections can affect the door's alignment.
Have a Helper: Glass shower doors are heavy and awkward to handle alone. Having a second person is essential for safety and accuracy.
Mark the Hinge Locations: Hold the door in place on the shower curb, using shims to create the recommended gap (usually about 1/4 inch) at the bottom. Use your level to ensure the door is perfectly plumb (vertically straight). With the door held steady, have your helper mark the hinge mounting holes on the wall with a pencil.
Drill the Pilot Holes: Carefully move the door away to a safe location. Using the correct drill bit for your wall material (e.g., a tile bit for ceramic or porcelain), drill pilot holes where you made your marks. If you're drilling through tile, go slowly to prevent cracking.
Install Wall Anchors: Insert the wall anchors provided with your shower door hinge kit into the pilot holes. Tap them gently with a rubber mallet until they are flush with the wall. Attach the Hinges to the Wall: Align the hinges with the anchors and securely fasten them to the wall using the provided screws. Do not overtighten them at this stage; you may need to make minor adjustments later.
Mount the Door: This is where your helper is crucial. Carefully lift the glass door and align the pre-drilled holes in the glass with the hinges. Insert the screws through the hinge plates and into the glass, making sure any protective gaskets are correctly placed between the metal and the glass. Tighten the screws securely but avoid over-torquing, which could damage the glass.
Check for Alignment and Swing: With the door mounted, remove the shims from the bottom. Gently swing the door to check its movement. It should open and close smoothly without catching on the curb or adjacent panels. Use your level again to confirm it is still perfectly plumb.
Install the Handle and Seals: Attach the door handle according to the manufacturer's instructions. Install any vinyl seals or sweeps along the bottom and sides of the door to create a watertight barrier.
Seal the Edges: Apply a thin, even bead of clear silicone sealant around the exterior edges of the fixed hinge plates where they meet the wall. This prevents water from seeping behind the hardware. Let the sealant cure for at least 24 hours before using the shower.
Over time, a pivot shower door may begin to sag, drag on the floor, or fall out of alignment. These issues are often due to the pivot hinge needing a simple adjustment. Adjusting a glass shower door pivot hinge is usually straightforward and can restore its smooth, balanced swing.
Most pivot hinge systems allow for vertical and horizontal adjustments. Here’s how to tackle common alignment problems.
Identify the Adjustment Screws: Examine the pivot hinge hardware at the top and bottom of the door. You should find small set screws, often Allen or Phillips head, that lock the pivot mechanism in place. The top pivot usually controls the side-to-side alignment, while the bottom pivot often allows for height adjustment.
Prepare for Adjustment: Open the shower door slightly and place wooden shims or blocks under the outer corner to support its weight. This prevents the door from dropping suddenly when you loosen the screws.
Adjusting for Sag (Vertical Alignment): If your door is dragging on the curb, you need to raise it. Locate the adjustment screw on the bottom pivot hinge. Loosen the locking set screw first, then turn the main adjustment screw to raise or lower the door. Have your helper watch the gap at the bottom and top to ensure it becomes even. Once satisfied, retighten the locking screw.
Adjusting for Gaps (Horizontal Alignment): If the gap between the door and the wall or fixed panel is uneven, you'll need to adjust the top pivot hinge. Loosen the locking screws on the top pivot assembly. This will allow you to slide the door slightly left or right. Move the door until the vertical gap is consistent from top to bottom. Use your level to ensure the door is plumb before retightening the screws.
Final Check: After making adjustments, carefully remove the shims and slowly swing the door open and closed several times. Check that it moves freely without scraping and that it aligns properly with the magnetic catch or seal when closed. If further tweaks are needed, repeat the steps until the alignment is perfect.
Yes, you can often replace just the glass shower door hinges, especially if they are a standard size and mounting style. It's important to purchase replacement hinges that match the hole pattern and thickness requirements of your existing glass door.
Leaks are usually caused by worn-out or poorly installed vinyl seals and sweeps. Check the seals along the bottom and side of the door for any gaps or damage. Replacing these seals is a simple and effective way to restore a watertight barrier. Also, ensure the silicone sealant around any fixed panels and hardware is intact.
The weight capacity of a shower door hinge varies by brand and model. Standard high-quality hinges typically support around 40-50 pounds each. It's crucial to use the number of hinges recommended by the door manufacturer for the specific size and weight of your glass panel.
Solid brass and stainless steel are the best materials for glass shower door hinges. They are highly resistant to corrosion and rust, ensuring long-term durability and performance in the wet environment of a shower.
