ESH-201
ES
HS 83021000
90°
chrome, satin, black, Brass
handle
| Quantity: | |
|---|---|
Catalog Number: ESH-201
With high-quality stainless steel spring
Available in Several Beautiful Finishes
One Year Warranty

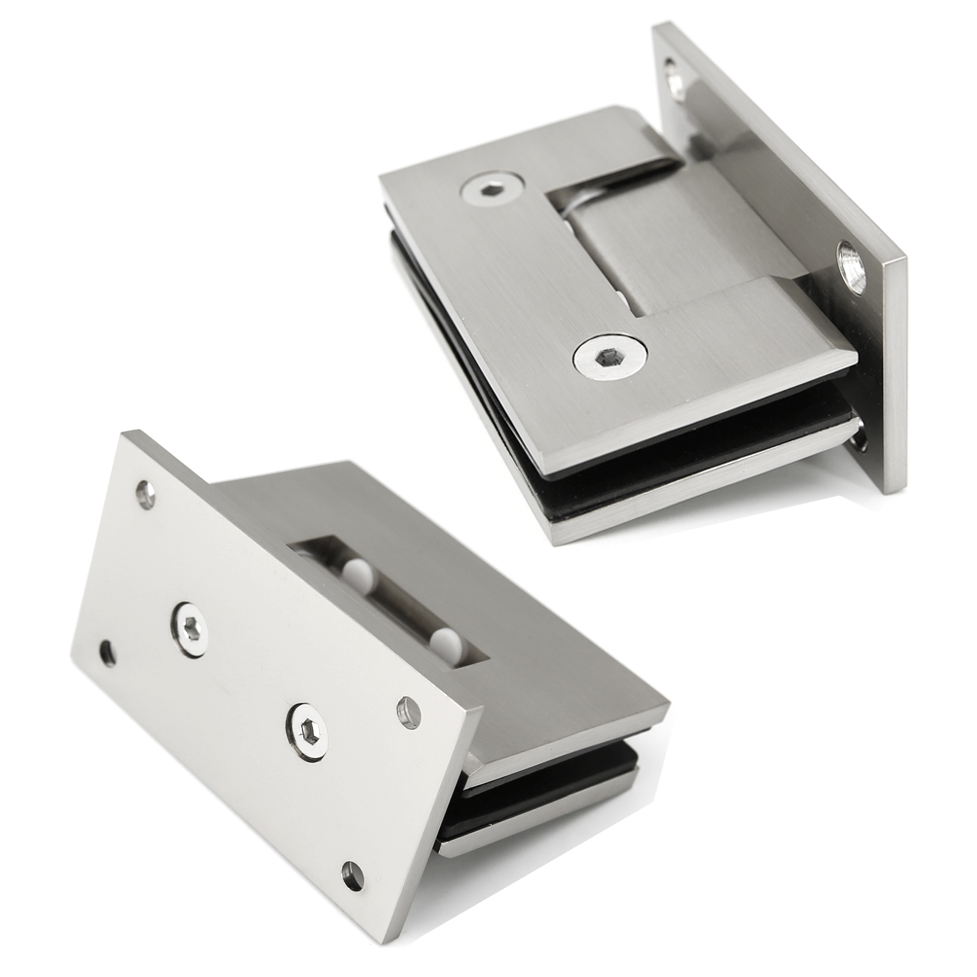

Wall Mount Short Back Plate Heavy duty Model
Use Monolithic Tempered Glass

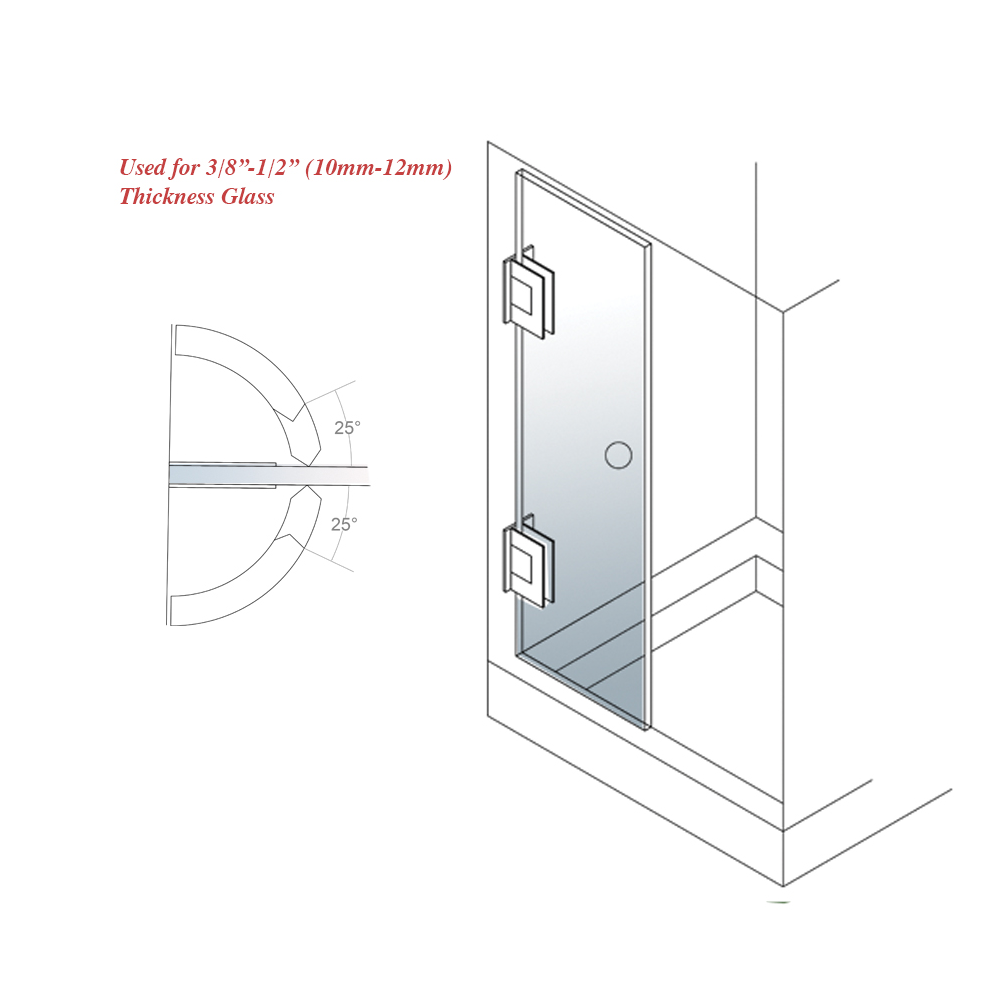

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Straight Edge Sharp Corner Design
More Details:
Catalog Number: | ESH-201 |
Also Available in These Catalogs: | ESH-201,ESH-201S,ESH-201H,ESH-202,ESH-203,ESH-204 |
Color: | Satin Nickel |
Height: | 90 mm |
Width: | 55 mm |
Ship Via: | SEA, AIR |
Maximun Weight: | 45kg/2hinges |
Minimum Order: | 100 pcs. |
Other Finishes:
|
Additional Product Information:
STANDARD REVERSIBLE SPRING: Each ESH Series Hinges with high-quality stainless steel spring
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 36" (914mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model,
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position

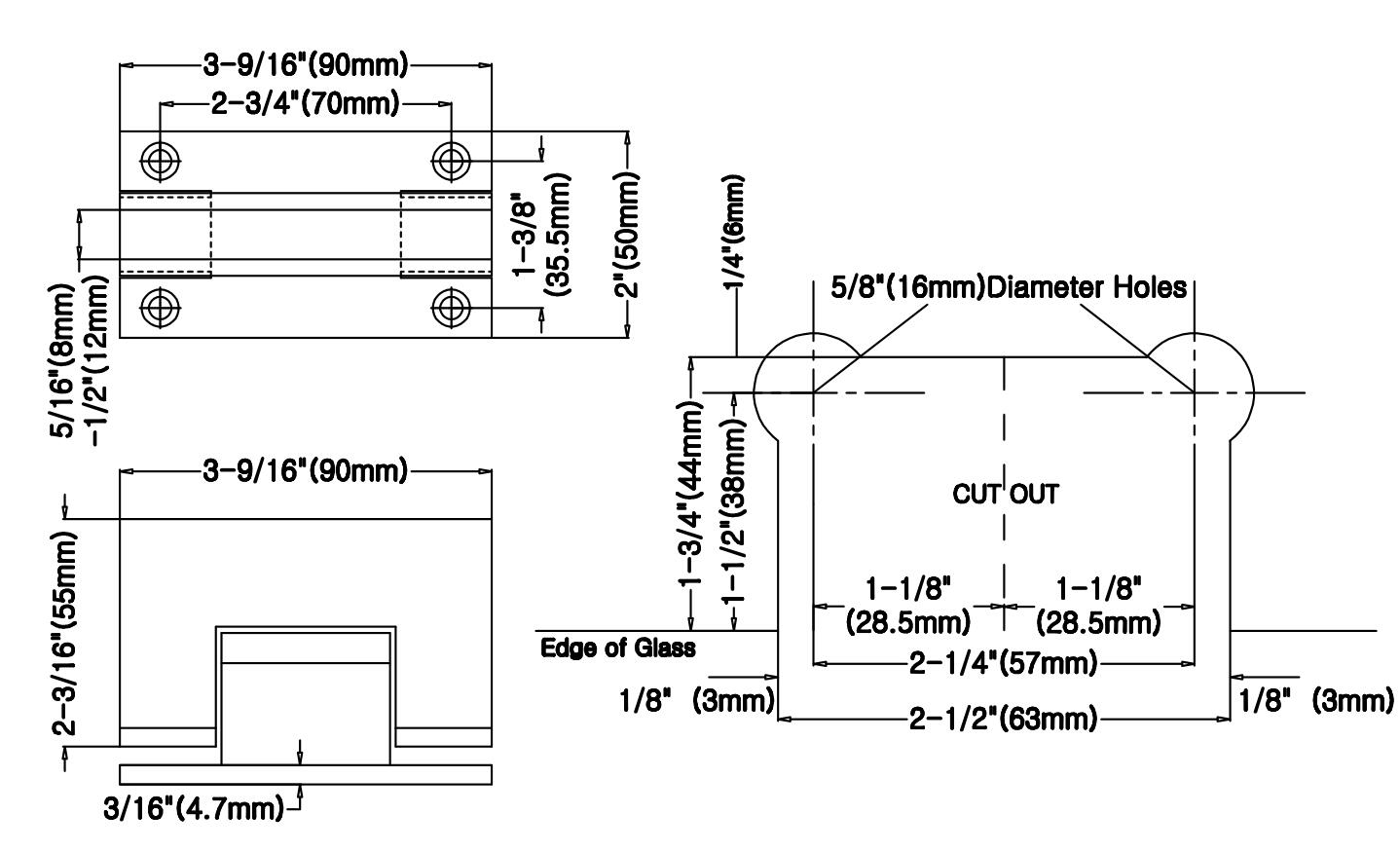

Cut-Out Required

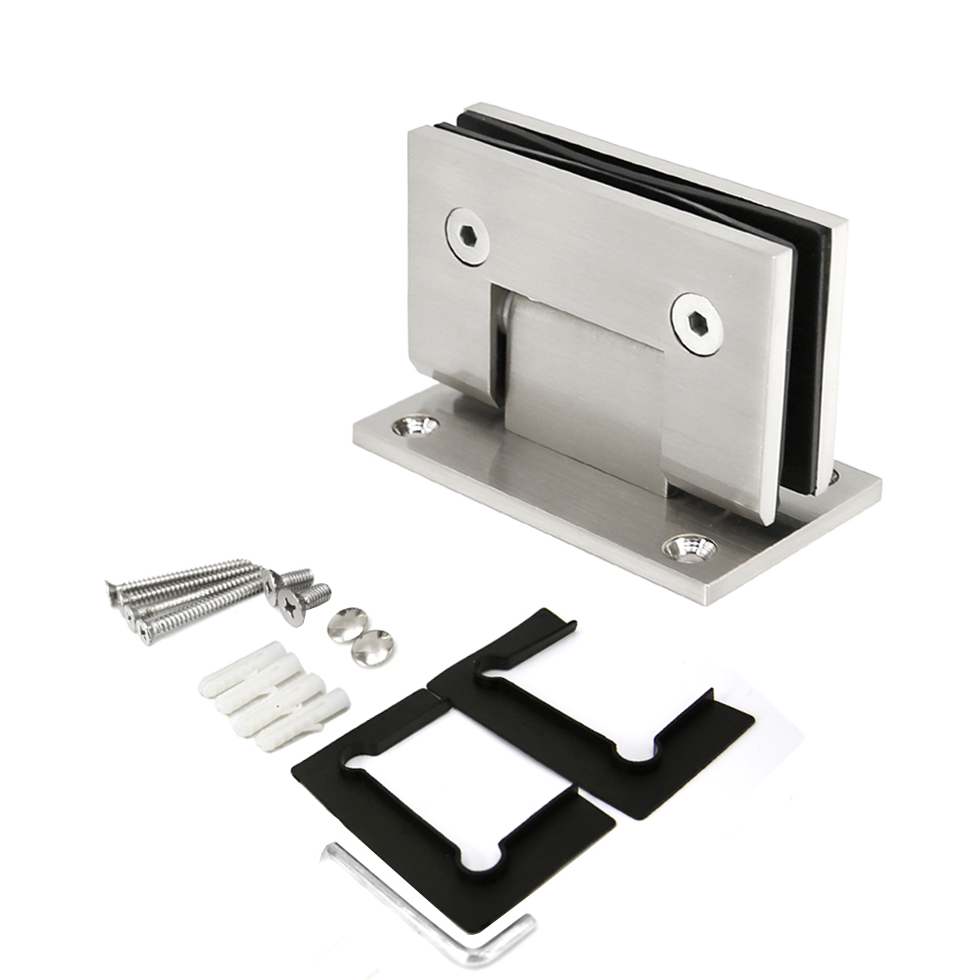

Includes: Gaskets, Screws, and Glass Fabrication Dimensions
