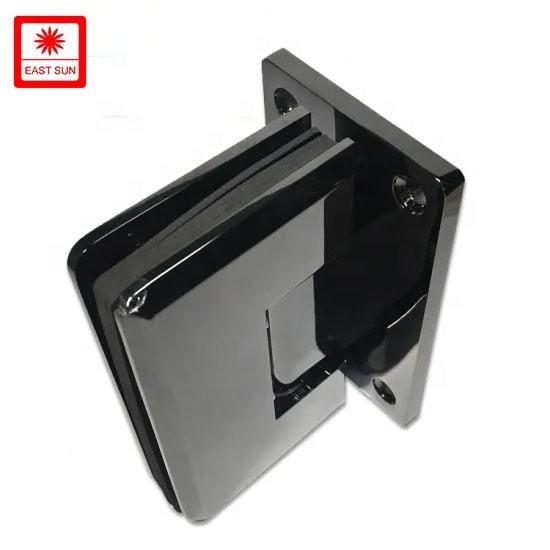

90 Degree Wall Mount Full Back Plate Frameless Shower Door Hinge Glass Bracket for 1/2″ – 3/8″ Glass

  • ESH-301B

  • 90°

  • Stainless steel

  • handle

Availability:
Quantity:
Product Description


Frameless glass black interior door hinges modern wall to glass black matte hinge


Catalog Number: ESH-301B


With high-quality stainless steel spring

Available in Several Beautiful Finishes

One Year Warranty

Wall Mount Short Back Plate Heavy duty Model

Use Monolithic Tempered Glass

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass

Straight Edge Straight Corner Design

Bevel Edge Round Corner Design


More Details:

Catalog Number:

ESH-301B

Also Available   in These Catalogs:

ESH-301,ESH-301S,ESH-301H,ESH-302,ESH-303,ESH-304

Color:

 Matte Black

Height:

100 mm

Width:

59 mm

Ship Via:

SEA, AIR

Maximun Weight:

50kg/2hinges

Minimum Order:

50 pcs.

Other Finishes:


  Polished Chrome ,Oil Rubbed Bronze , Brushed Bronze ,Polished Nickel, Satin Nickel, PVD Gold, Satin Brass

说明: https://www.crlaurence.com/crlapps/showline/images/collapse.jpg Additional Product Information:

STANDARD REVERSIBLE  SPRING: Each ESH Series Hinges with high-quality stainless steel spring

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).


Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 36" (914mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model,
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
