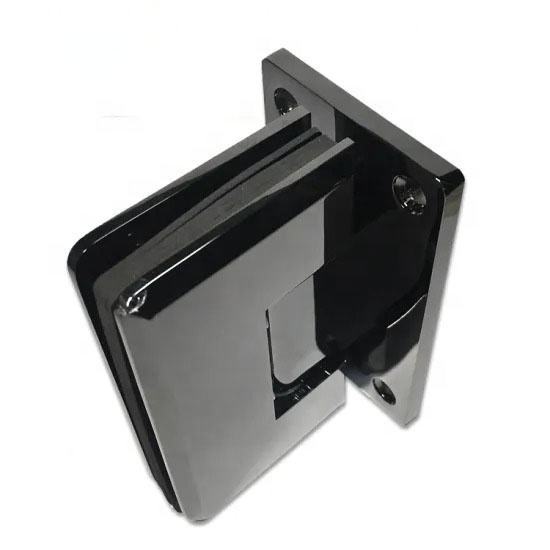

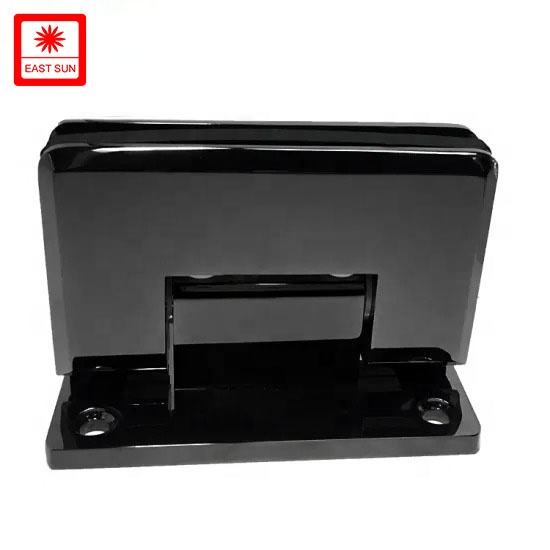

90 Degree Matte Black Wall To Glass Frameless Shower Door Hinge for 1/2″ – 3/8″ Glass

  • ESH-301

  • 90°

  • Stainless steel

  • handle

Availability:
Quantity:
Product Description


Frameless shower Door hardware Glass Door Hing


Model: ESH-301

With high-quality stainless steel spring

Available in Several Beautiful Finishes

One Year Warranty

Wall Mount Full Back Plate  Model

Use Monolithic Tempered Glass

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass

Bevel Edge Round Corner Design




More Details:

Catalog Number:

ESH-301

Adjustable

NO

Finish/Color:

Matte Black

Height:

55mm

Width:

90 mm

Back   Plate

Edge Profile

Full back plate

Beveled

Material:

Brass

Maximum Door Weight   - 2 Hinges (Pounds)

80

Maximum   Door Weight - 3 Hinges (Pounds)

120

Maximum Door Width   - 2 Hinges (Inches)

28

Maximum   Door Width - 3 Hinges (Inches)

32

Mounting   Type

Wall Mount

Self-Centering

Yes

Series

ECH

Other Finishes:


  Polished Chrome ,Oil Rubbed Bronze , Brushed Bronze ,Polished Nickel, Brushed Nickel, PVD Gold, Satin Brass

说明: https://www.crlaurence.com/crlapps/showline/images/collapse.jpg Additional Product Information:

STANDARD REVERSIBLE  SPRING: Each ESH Series Hinges with high-quality stainless steel spring

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).


Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 36" (914mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model,


Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
