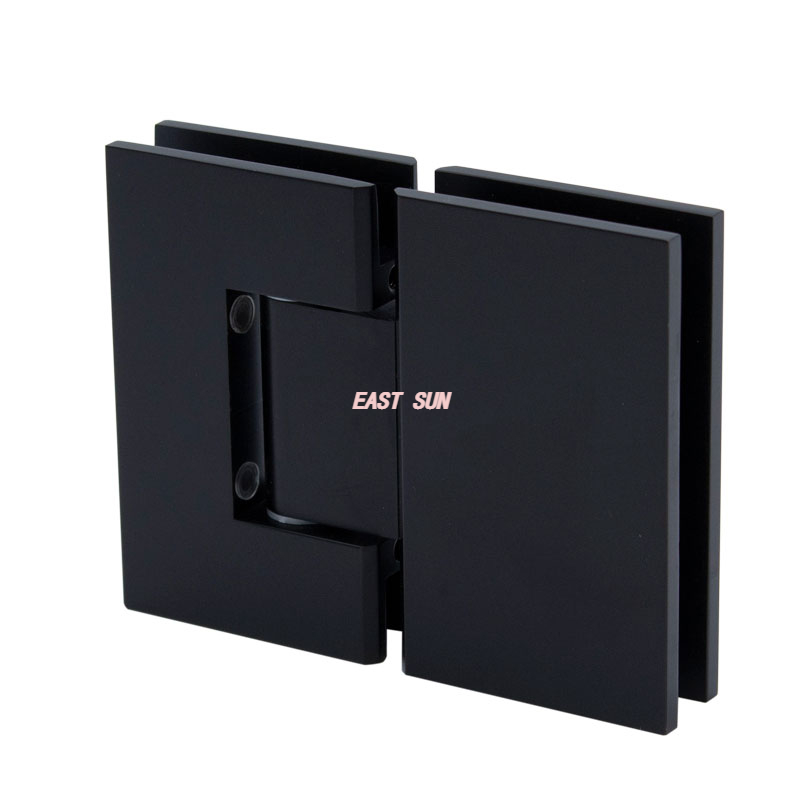

Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge

1、 For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
2、 With high-quality stainless steel spring
3、Available in Several Beautiful Finishes
4、1 Year Warranty
5、180 Degree Glass-to-Glass Standard Model
6、Use Monolithic Tempered Glass
7、Simple Rectangular Cut-Out for Ease of Glass Fabrication
  • ESH-203

  • 180°

  • chrome  satin  black  Brass

  • hinge

Availability:
Quantity:


Product Details

Adjustable

NO

Finish/Color:

·          Brushed Nickel

Edge   Profile

·          Square

Glazing Thickness   (Inches)

5/16 To 1/2 ( 8 -12mm)

Height:   (inch)

·          3-1/2  (90   mm)

Width:   (inch)

·          2-3/16 (55 mm)

Glass To Glass Angle (Degrees)

·          180

Material:

Brass

Maximum Door Weight   - 2 Hinges (Pounds)

80

Maximum   Door Weight - 3 Hinges (Pounds)

120

Maximum   Door Width - 2 Hinges (Inches)

28

Maximum   Door Width - 3 Hinges (Inches)

32

Mounting   Type

Glass To Glass

Self-Centering

·          Yes

Series

ESH-201 Series Geneva


Other Finishes:


  Polished Chrome ,Oil Rubbed Bronze , Brushed   Bronze ,Polished Nickel, Brushed Nickel, PVD Gold, Satin Brass


Product Overview



·        For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass

With high-quality stainless steel spring

·        Available in Several Beautiful Finishes

·        1 Year Warranty

·        180 Degree Glass-to-Glass Standard Model

·        Use Monolithic Tempered Glass

Simple Rectangular Cut-Out for Ease of Glass Fabrication




ESH-201 Series Geneva of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.

A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types.

Made of brass with all moving parts (pins and springs) in stainless steel.



Using two hinges  with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm)


Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required :

Includes: Gaskets, Screws, and Glass Fabrication Dimensions



Custom finishes are available on request. Contact us
