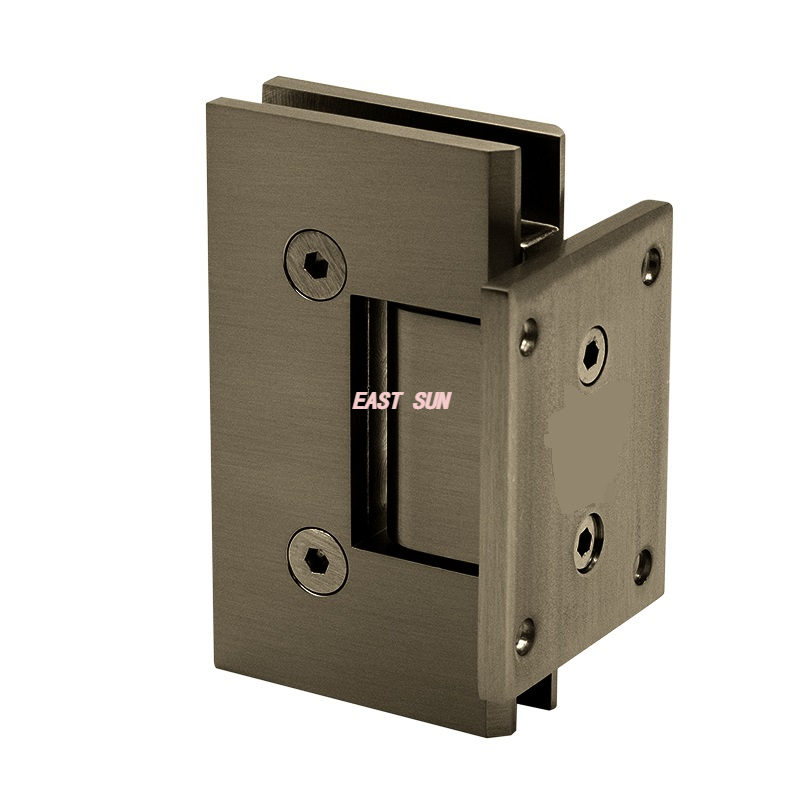

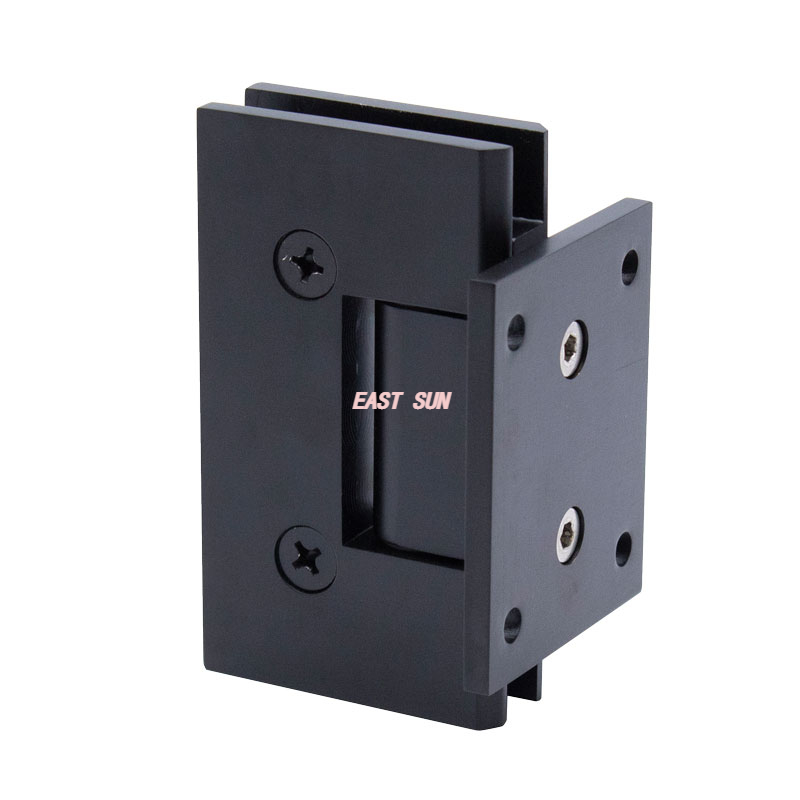

Geneva Series Wall Mount Short Back Plate Hinge

1、For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
2、With high-quality stainless steel spring
3、Available in Several Beautiful Finishes
4、 1 Year Warranty
5、Wall Mount Short Back Plate Standard Model
6、 Use Monolithic Tempered Glass
7、Simple Rectangular Cut-Out for Ease of Glass Fabrication

  • ESH-201S

  • 90°

  • chrome  satin  black  Brass

  • hinge

Availability:
Quantity:

PRODUCT OVERVIEW


·        For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass

With high-quality stainless steel spring

·        Available in Several Beautiful Finishes

·        1 Year Warranty

Wall Mount Short Back Plate Standard Model

·        Use Monolithic Tempered Glass

Simple Rectangular Cut-Out for Ease of Glass Fabrication



More Details:

Adjustable

NO

Finish/Color:

·          Brushed Nickel

Glazing Thickness   (Inches)

5/16 To 1/2 ( 8 -12mm)

Height:   (inch)

·          3-1/2  (90   mm)

Width:   (inch)

·          2-3/16 (55 mm)

Back   Plate

·          Short

Material:

Brass

Maximum Door Weight   - 2 Hinges (Pounds)

80

Maximum   Door Weight - 3 Hinges (Pounds)

120

Maximum   Door Width - 2 Hinges (Inches)

28

Maximum   Door Width - 3 Hinges (Inches)

32

Mounting   Type

·          Wall Mount

Self-Centering

·          Yes

Series

ESH-201 Series Geneva


Other Finishes:


  Polished Chrome ,Oil Rubbed Bronze , Brushed   Bronze ,Polished Nickel, Brushed Nickel, PVD Gold, Satin Brass


ESH-201 Series Geneva of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.

A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types.

Made of brass with all moving parts (pins and springs) in stainless steel.


Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm)


Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required :

Includes: Gaskets, Screws, and Glass Fabrication Dimensions




Custom finishes are available on request. Contact us
