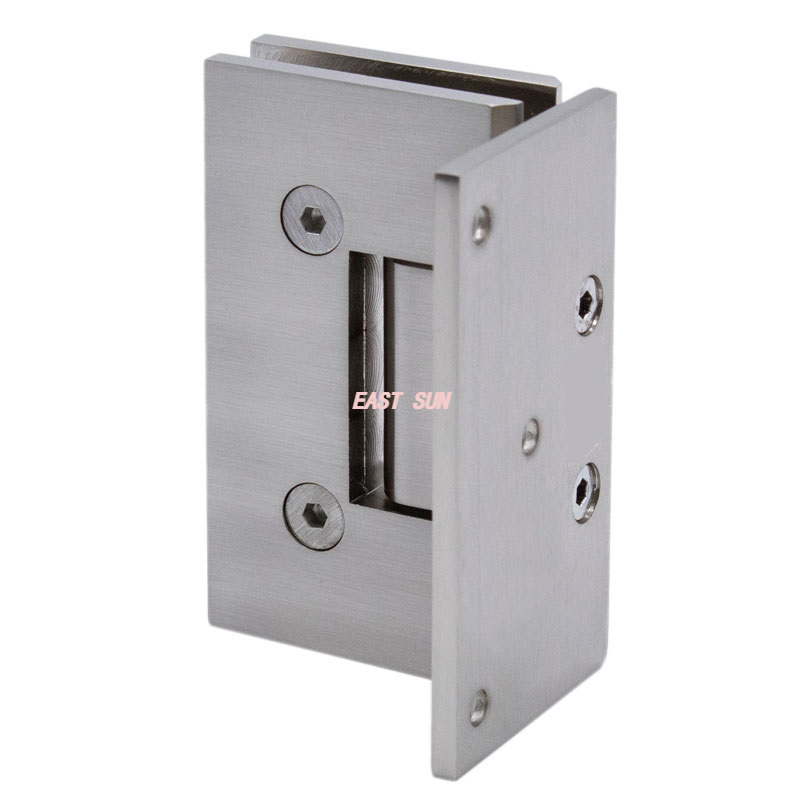

ESH-205
90°
chrome, satin, black, Brass
hinge
| Quantity: | |
|---|---|
PRODUCT OVERVIEW
· For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
·With high-quality stainless steel spring
· Available in Several Beautiful Finishes
· 1 Year Warranty
·Wall Mount Offset Back Plate Standard Model
· Use Monolithic Tempered Glass
Simple Rectangular Cut-Out for Ease of Glass Fabrication
More Details:
Adjustable | NO |
Finish/Color: | · Brushed Nickel |
Glazing Thickness (Inches) | 5/16 To 1/2 ( 8 -12mm) |
Height: (inch) | · 3-1/2 (90 mm) |
Width: (inch) | · 2-3/16 (55 mm) |
Back Plate | · Offset |
Material: | Brass |
Maximum Door Weight - 2 Hinges (Pounds) | 80 |
Maximum Door | 120 |
Maximum Door Width - 2 Hinges (Inches) | 28 |
Maximum Door Width - 3 Hinges (Inches) | 32 |
Mounting Type | · Wall Mount |
Self-Centering | · Yes |
Series | ESH-201 Series Geneva |
Other Finishes:
|
ESH-201 Series Geneva of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types.
Made of brass with all moving parts (pins and springs) in stainless steel.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm)
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required :
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact us
