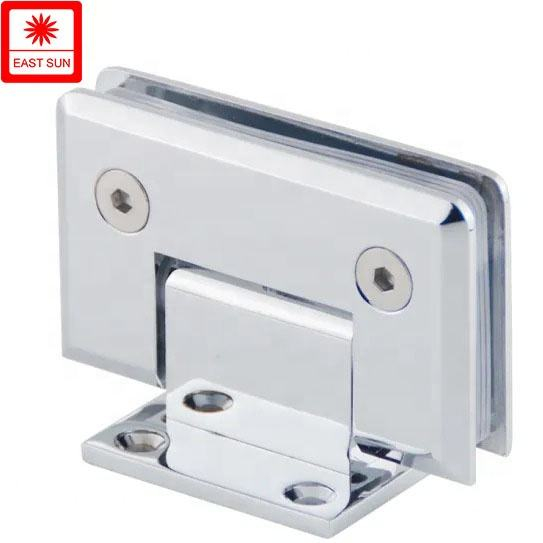

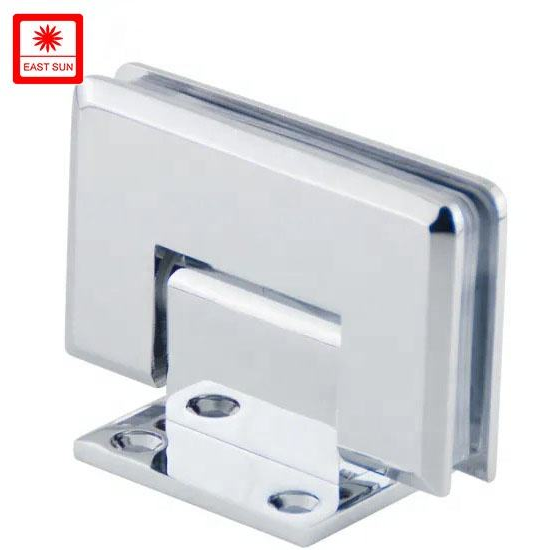

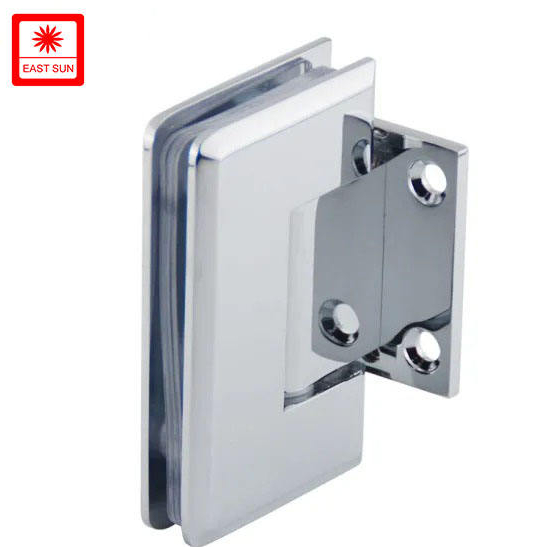

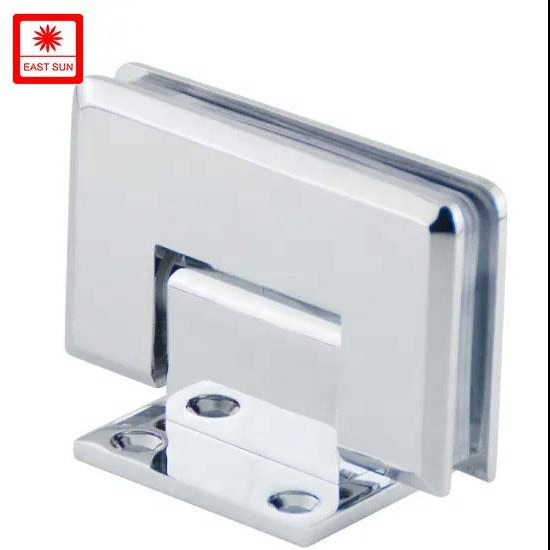

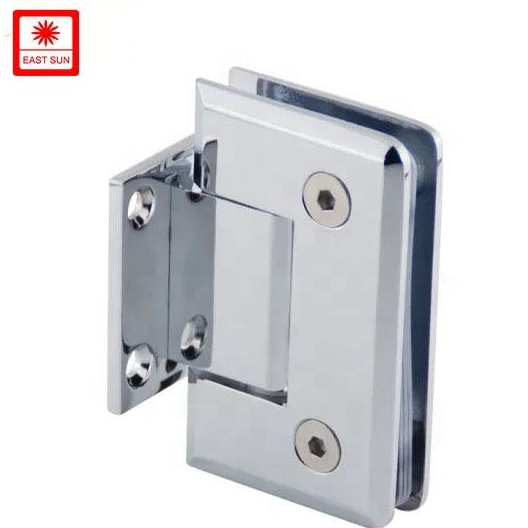

Heavy Duty 90 Degree Polished Chrom Wall To Glass Shower Door Hinge for 1/2″ – 3/8″ Glass

  • ESH-301BS

  • 830241

  • 90°

  • handle

Availability:
Quantity:
Product Description


Best Quality Heavy Duty Hinge Frameless Glass Shower Door Hinges


Catalog Number:  ESH-301BS


With high-quality stainless steel spring

Available in Several Beautiful Finishes

One Year Warranty

Wall Mount Short Back Plate Heavy duty Hinge

Bevel Edge Round Corner Design

Use Monolithic Tempered Glass


Catalog Number: ESH-301BS
Also Available in These Catalogs: ESH-301,ESH-301S,ESH-301H,ESH-302,ESH-303,ESH-304
Color: Polished Chrome
Height: 100 mm
Width: 59 mm
Ship Via: SEA, AIR
Maximun Weight: 50kg/2hinges
Minimum Order: 50 pcs.
Other Finishes:

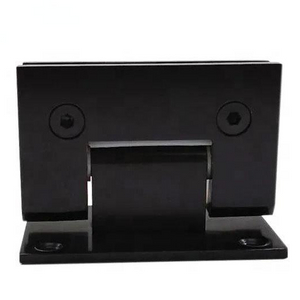

Polished Chrome ,Oil Rubbed Bronze , Brushed Bronze ,Polished Nickel, Satin Nickel, PVD Gold, Satin Brass

STANDARD REVERSIBLE  SPRING: Each ESH Series Hinges with high-quality stainless steel spring

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).


Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 36" (914mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model,
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position

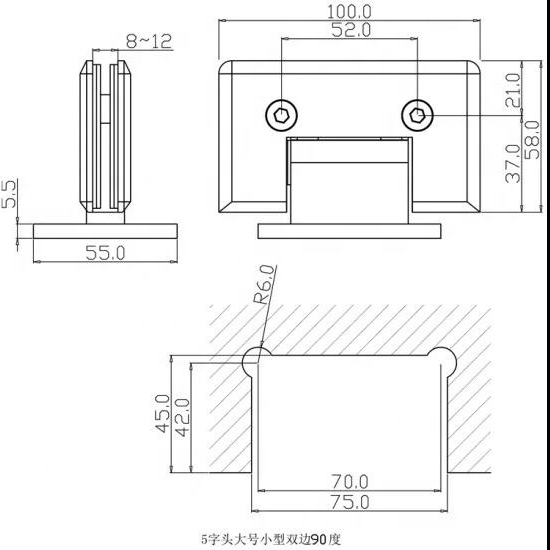

Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
