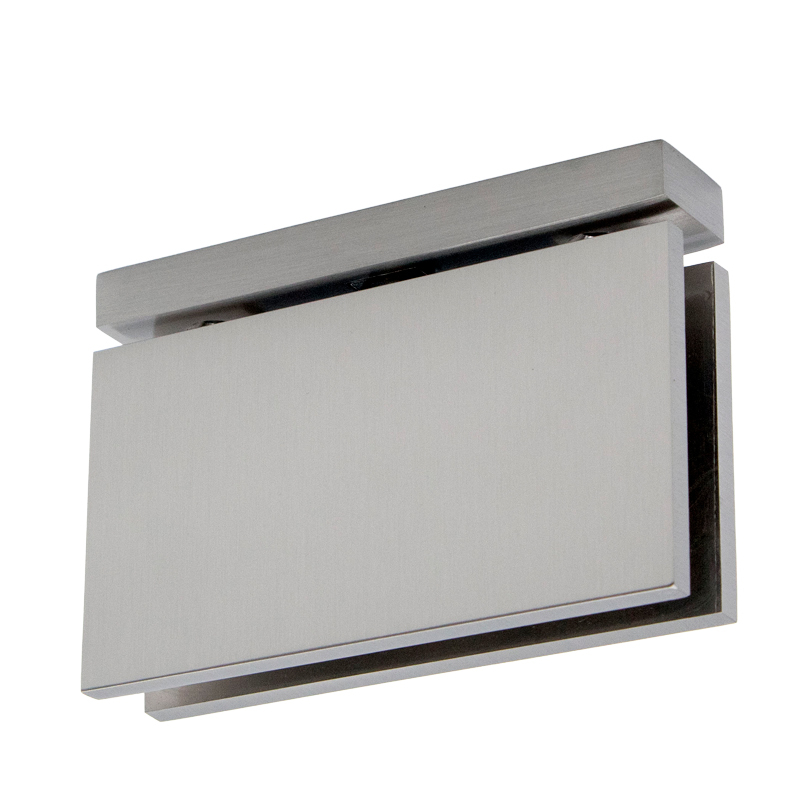

Brushed Nickel Cardiff Series Top Or Bottom Mount Pivot Hinge

1、Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
2、Available in Several Beautiful Finishes
3、1 Year Warranty
4、Use Monolithic Tempered Glass
  • PTD-201

  • 90°

  • chrome  Brass

  • hinge

Availability:
Quantity:

Product Details


·        Edge Profile

Square


·        Finish/Color:

Brushed Nickel


·        Glazing Thickness (Inches)

5/16 To 3/8


·        Height (Inches)

2


·        Material

Brass


·        Maximum Door Weight - 2 Hinges (Pounds)

100


·        Maximum Door Width (Inches)

31


·        Mounting Type

Head & Sill Mount


·        Self-Centering

Yes


·        Series

PTD-201 Series (Cardiff Pivot )


·        Width (Inches)

3-5/8


Product Overview


  • Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)

  • Available in Several Beautiful Finishes

  • 1 Year Warranty

  • Use Monolithic Tempered Glass


PTD-201 Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities.

Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections.


Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
