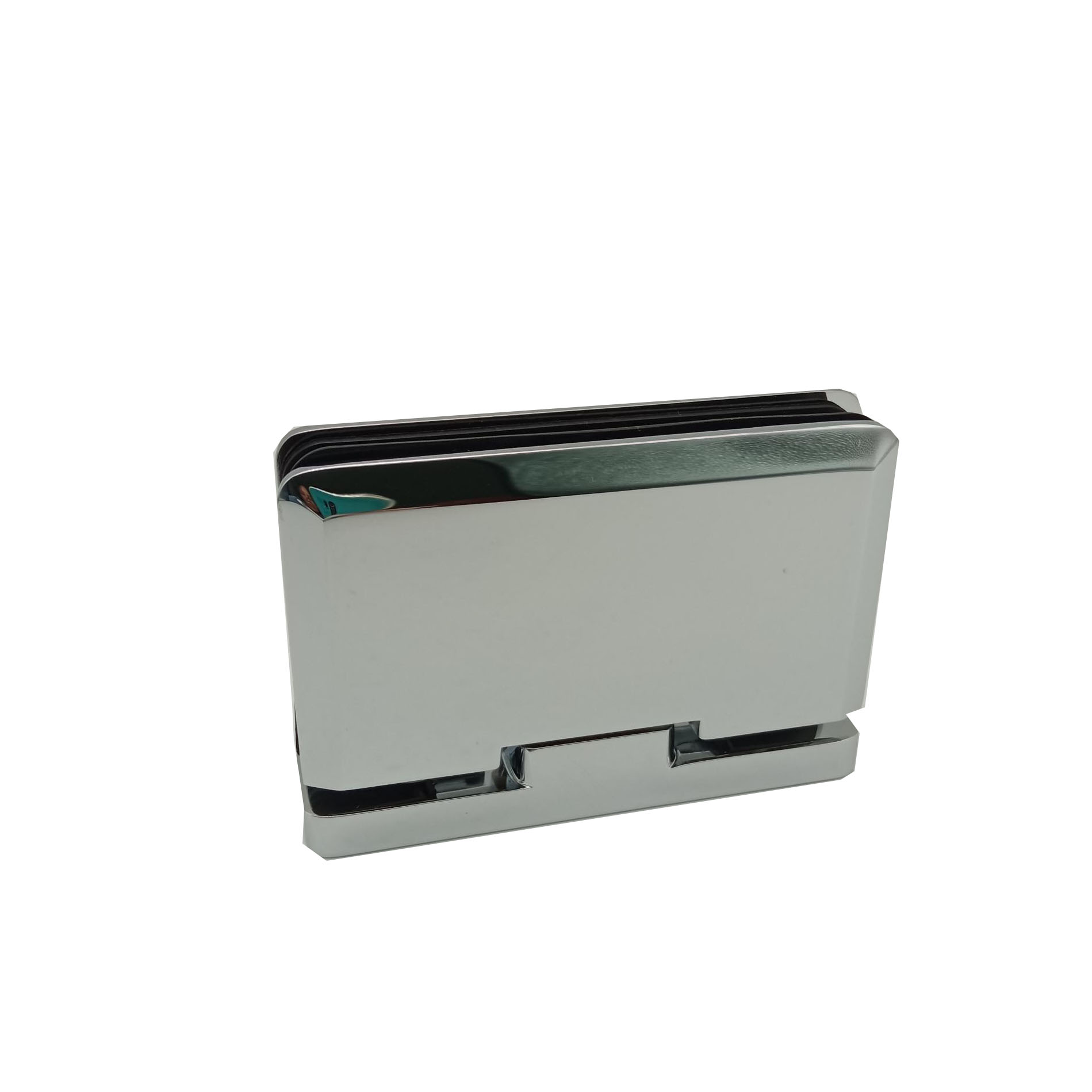

PTC-302A
90° 180°
chrome Brass
hinge
Availability: | |
---|---|
Quantity: | |
Product Details
Product Overview
Not Compatible with Header Systems
Self-Centering When within 15 Degree of Closed Position
Three Year Warranty
Use Monolithic Tempered Glass
The PTC-302 Adjustable Prima Series makes mounting top and bottom hinges easier than ever. Adjusting up to 5 degree both in and out to the desired door alignment can be done after the initial installation. The small Allen screws on the front and rear of the base plate are loosened using the provided 3 mm Allen Wrench, allowing positioning of the door to the desired closing position. Tightening the Allen screws ensures that the door closes to the same position every time.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, 3 mm Allen Wrench, and Glass Fabrication Dimensions
