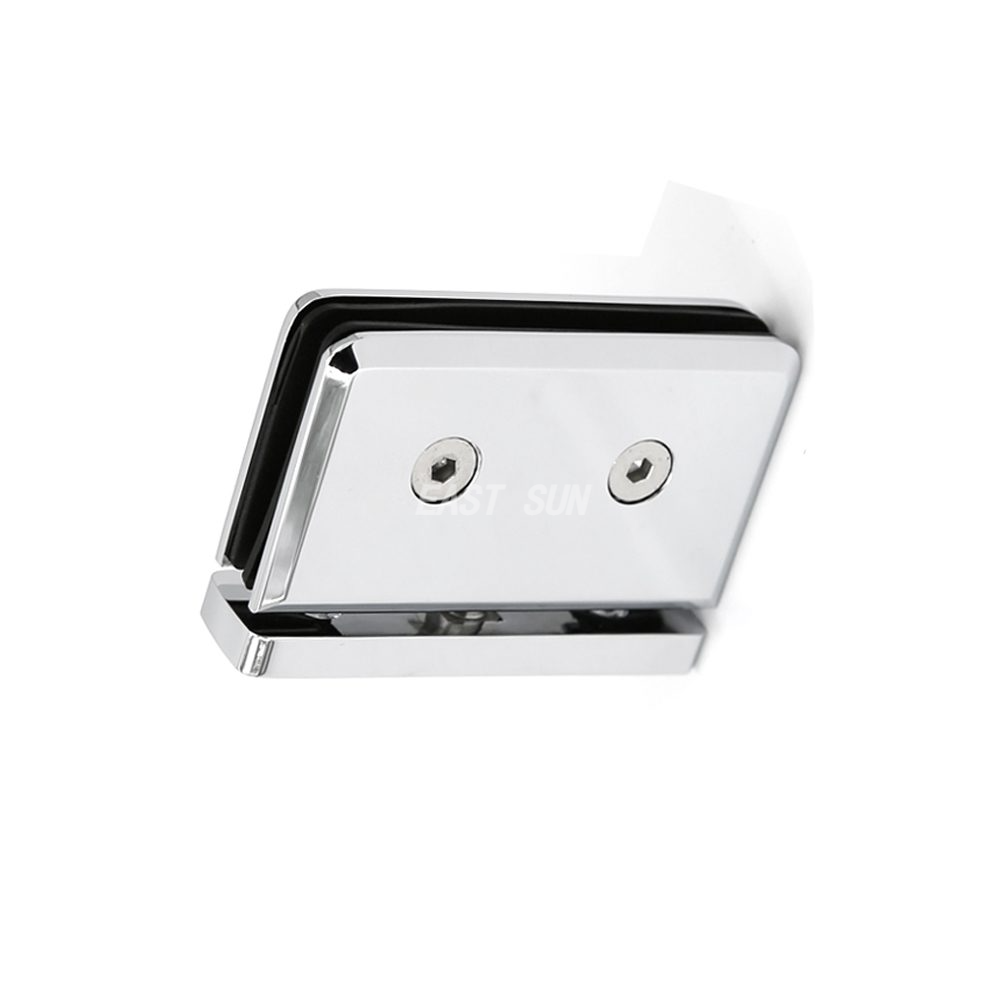

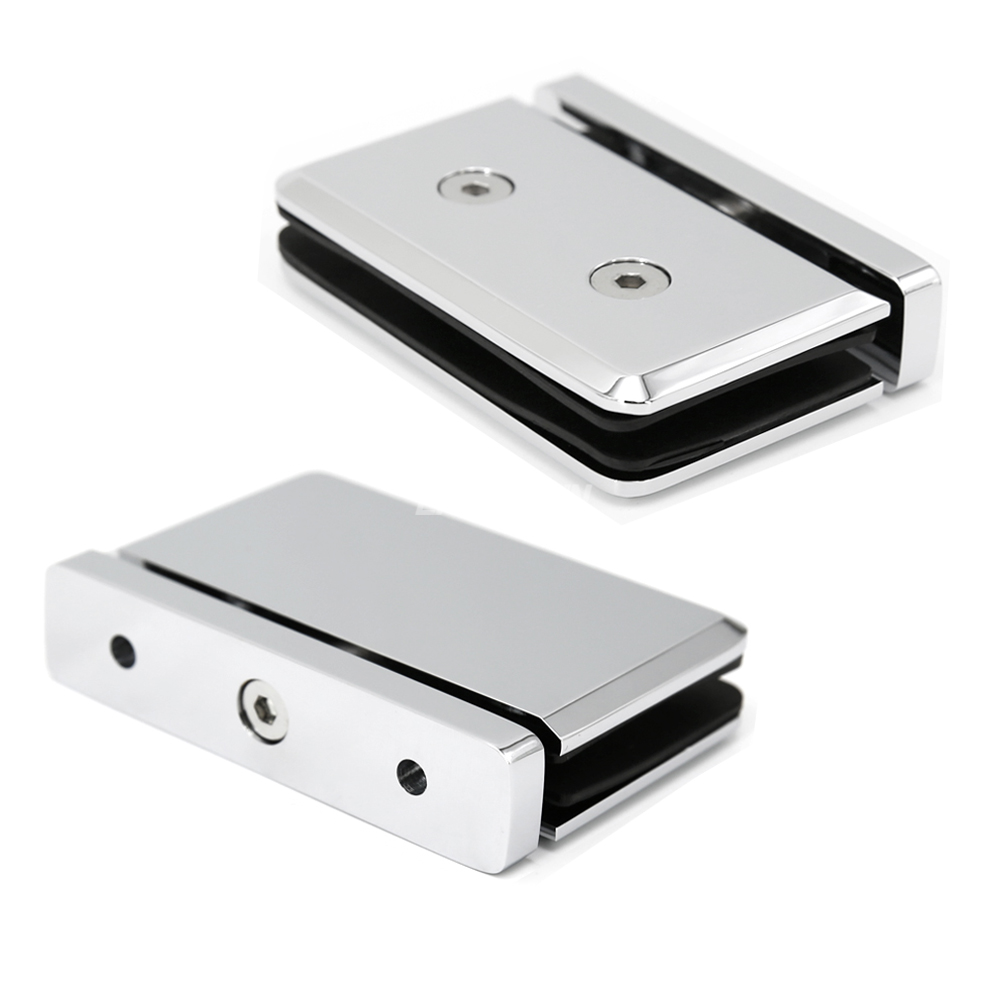

Polished Brass Senior Prima Series Top Or Bottom Mount Hinge

1、Top or Bottom Mount
2、For Use with 1/2" (12 mm) Glass
3、Available in Several Beautiful Finishes
4、Use Monolithic Tempered Glass
5、1 Year Warranty
  • PTB-301

  • 90°  180°

  • chrome  Brass

  • hinge

Availability:
Quantity:

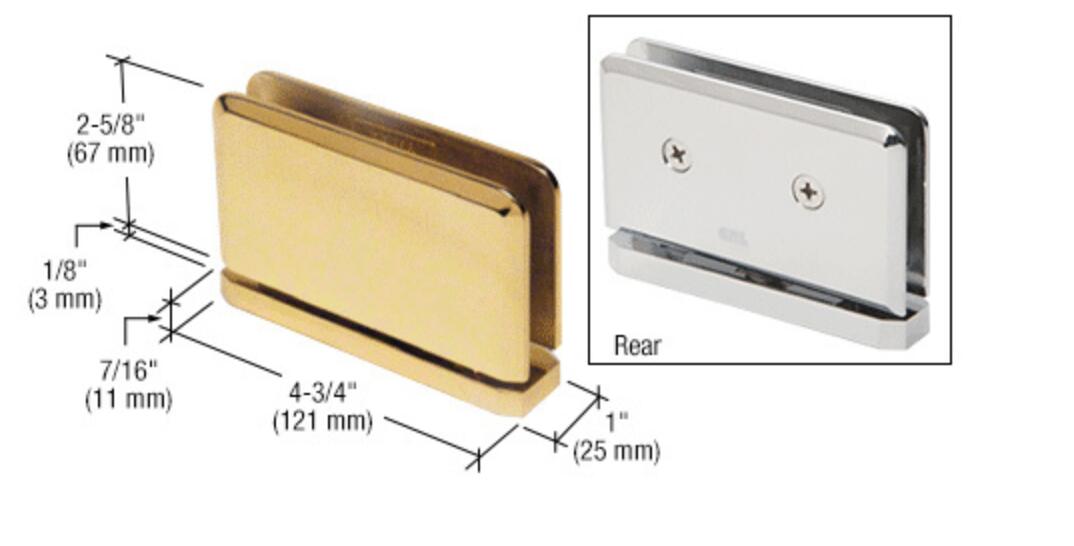

Product Details


  • Edge Profile
    Beveled


  • Finish/Color:
    Polished Brass


  • Glazing Thickness (Inches)
    1/2


  • Height (Inches)
  • 2-5/8

  • Material
  • Brass


  • Maximum Door Weight - 2 Hinges (Pounds)

  • 145


  • Maximum Door Width (Inches)
    36


  • Mounting Type
    Head & Sill Mount


  • Self-Centering
    Yes


  • Series
    PTB-301 Senior Prima


  • Width (Inches)
    4-3/4



Product Overview

  • Top or Bottom Mount

  • For Use with 1/2" (12 mm) Glass

  • Available in Several Beautiful Finishes

  • Use Monolithic Tempered Glass

  • 1 Year Warranty


Advantages of PTB-301 Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections.


SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).


SPECIFICATIONS:

Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15° of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions


Custom finishes are available on request. Contact us
