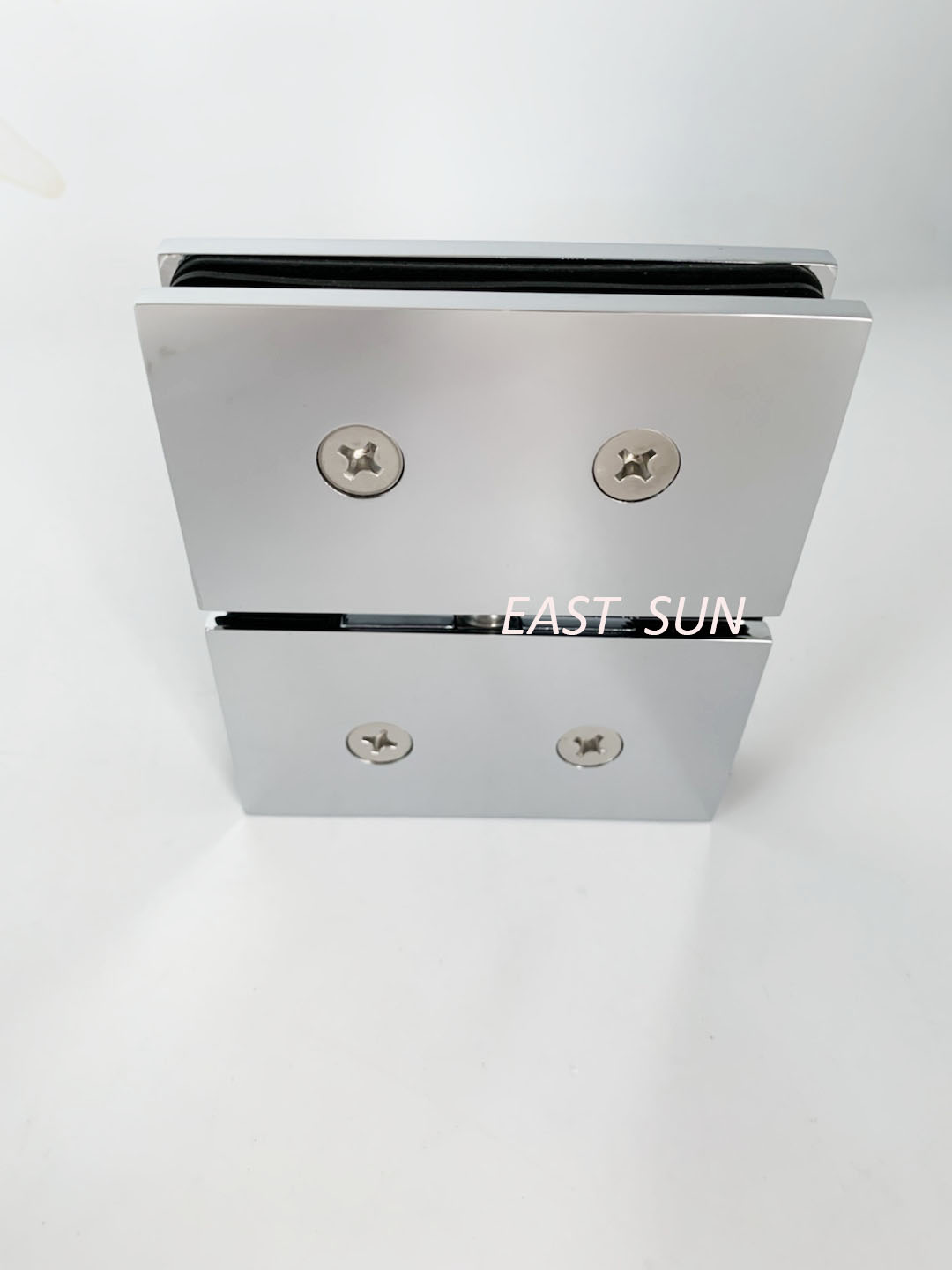

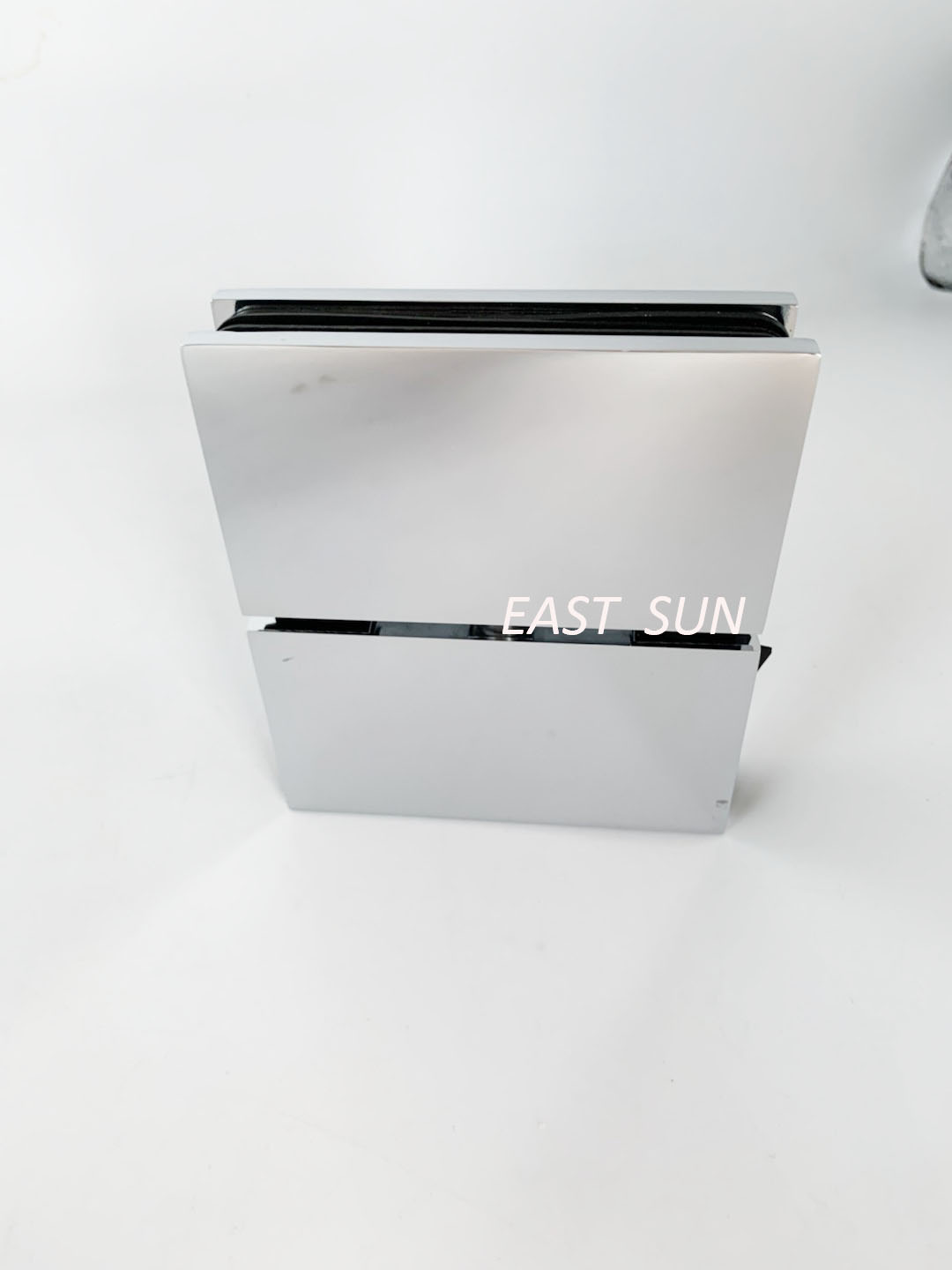

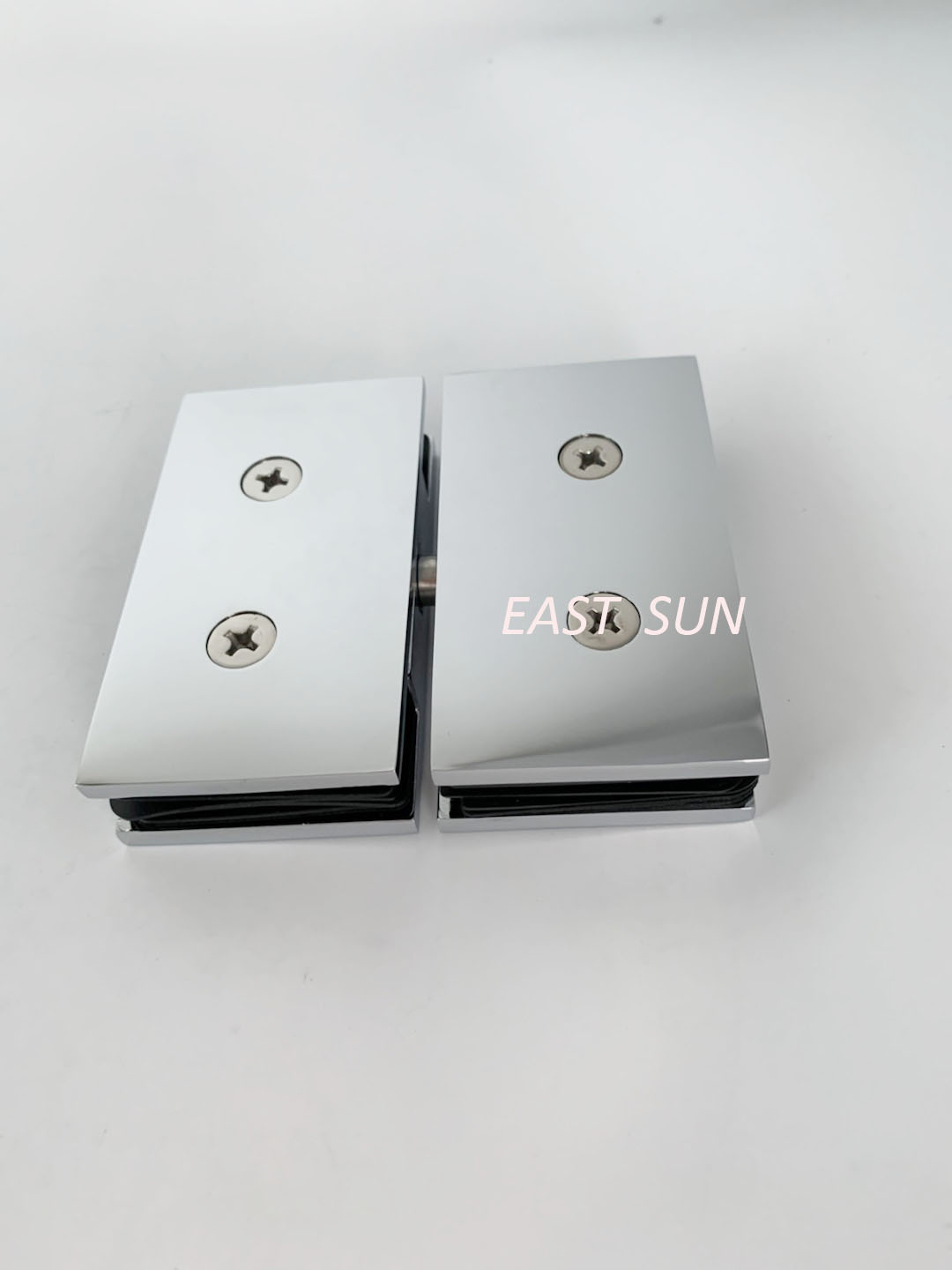

PTD-203
180°
chrome Brass
hinge
| Quantity: | |
|---|---|
Product Details
Glass-to-Fixed Transom Mount
Available in Several Beautiful Finishes
1 Year Warranty
Use Monolithic Tempered Glass
PTD-201 Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities.
Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections.
Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength.
The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
