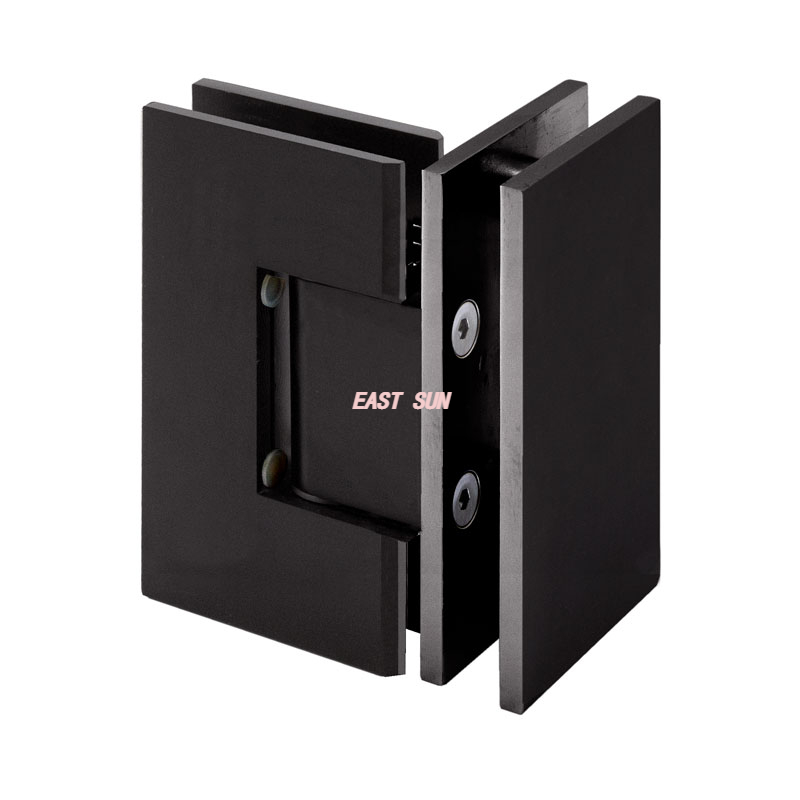

ESH-204B
90°

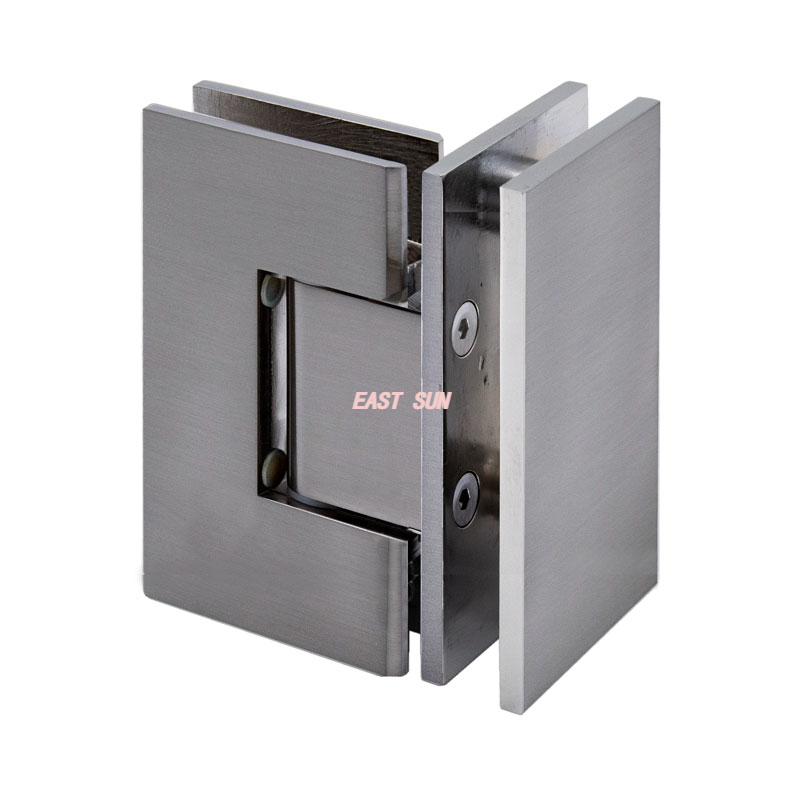

chrome satin black Brass
hinge
| Quantity: | |
|---|---|
With high-quality stainless steel spring
Available in Several Beautiful Finishes
One Year Warranty
90 Degree Glass-to-Glass Heavy duty Model
Use Monolithic Tempered Glass
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Straight Edge Straight Corner Design
Product Details
Adjustable | NO |
Edge Profile | Square |
Finish/Color: | · Matte Black |
Glass To Glass Angle (Degrees) | 90 |
Glazing Thickness (Inches) | · 3/8, 1/2 (10 -12mm) |
Height: (inch) | · 3-15/16 (100 mm) |
Width: (inch) | · 2-1/4 (59 mm) |
Material: | Brass |
Maximum Door Weight - 2 Hinges (Pounds) | 110 |
Maximum Door Weight - 3 Hinges (Pounds) | 140 |
Maximum Door Width - (Inches) | 36 |
Mounting Type | Glass To Glass |
Self-Centering | · Yes |
Series | ESH-201B Series Vienna |
Other Finishes:
|
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required : Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
