Heavy Duty Wall Mount Offset Back Plate Hinge

1、With high-quality stainless steel spring
2、Available in Several Beautiful Finishes
3、One Year Warranty
4、Wall Mount Short Back Plate Heavy duty Model
5、Use Monolithic Tempered Glass
6、Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
7、Straight Edge Straight Corner Design
  • ESH-205B

  • 90°

  • chrome  satin  black  Brass

  • hinge

Availability:
Quantity:

Product Overview


· Accommodates 3/8" to 1/2" (10 to 12 mm) Glass

·Available in Several Beautiful Finishes

·With high-quality stainless steel spring

· 1 Year Warranty

· Wall Mount Offset Back  Plate Heavy duty Model

· Use Monolithic Tempered Glass

·Straight Edge Straight Corner Design



Product Details

Adjustable

NO

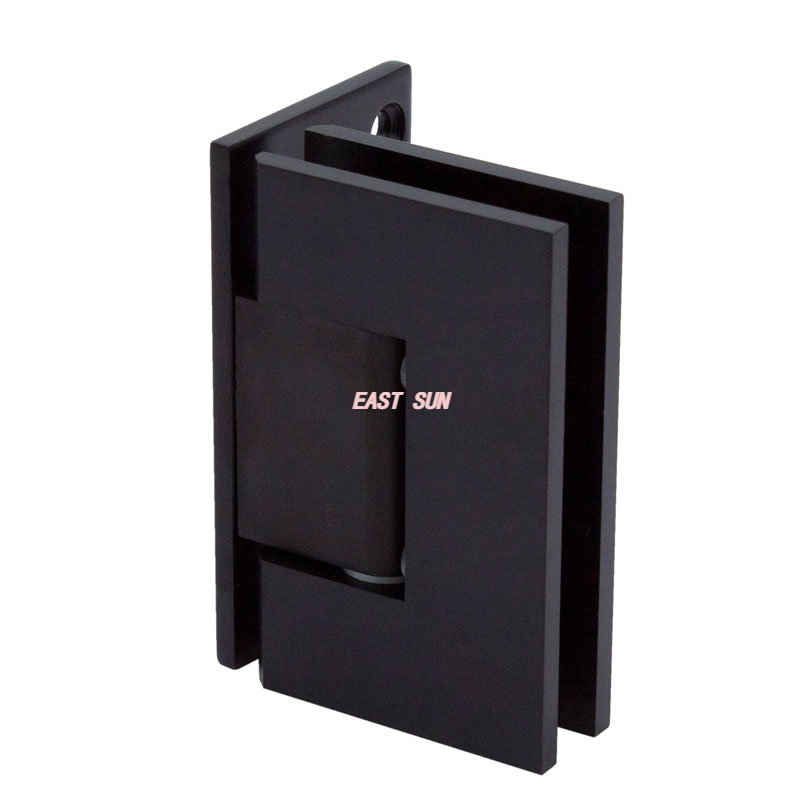

Finish/Color:

Matte Black

Glazing Thickness (Inches)

· 3/8, 1/2(10 to 12 mm)

Height: (inch)

· 3-15/16  (100 mm)

Width: (inch)

· 2-1/4   (59 mm)

Back Plate

Offset

Material:

Brass

Maximum Door Weight - 2 Hinges (Pounds)

100

Maximum Door Weight - 3 Hinges (Pounds)

130

Maximum Door Width - - 3/8 Glass (Inches)

34

Maximum Door Width -  -1/2 Glass (Inches)

32

Mounting Type

· Wall Mount

Self-Centering

· Yes

Series

ESH-201B Series Vienna


Other Finishes:

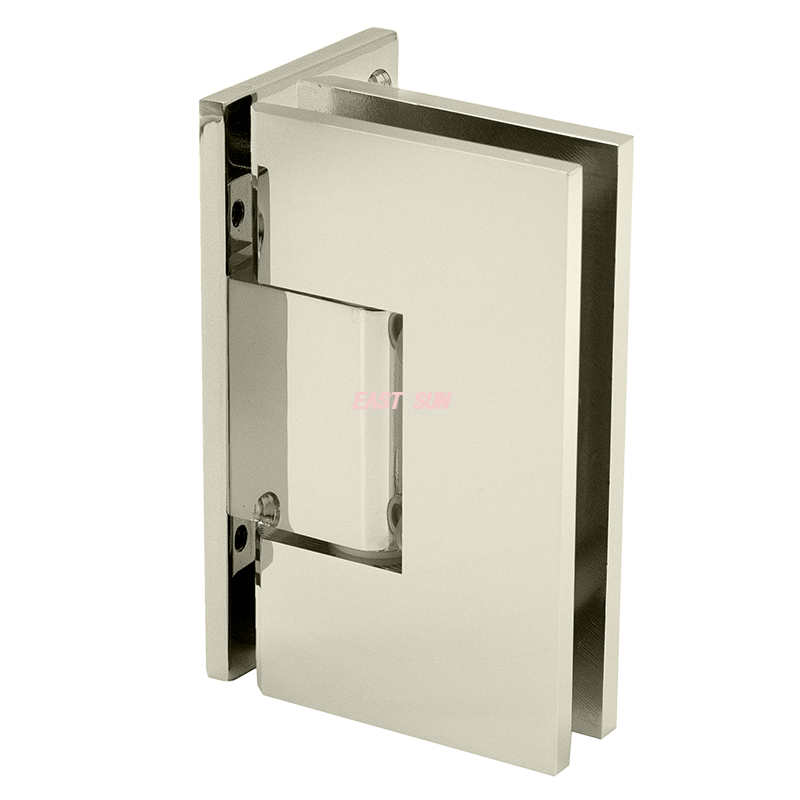

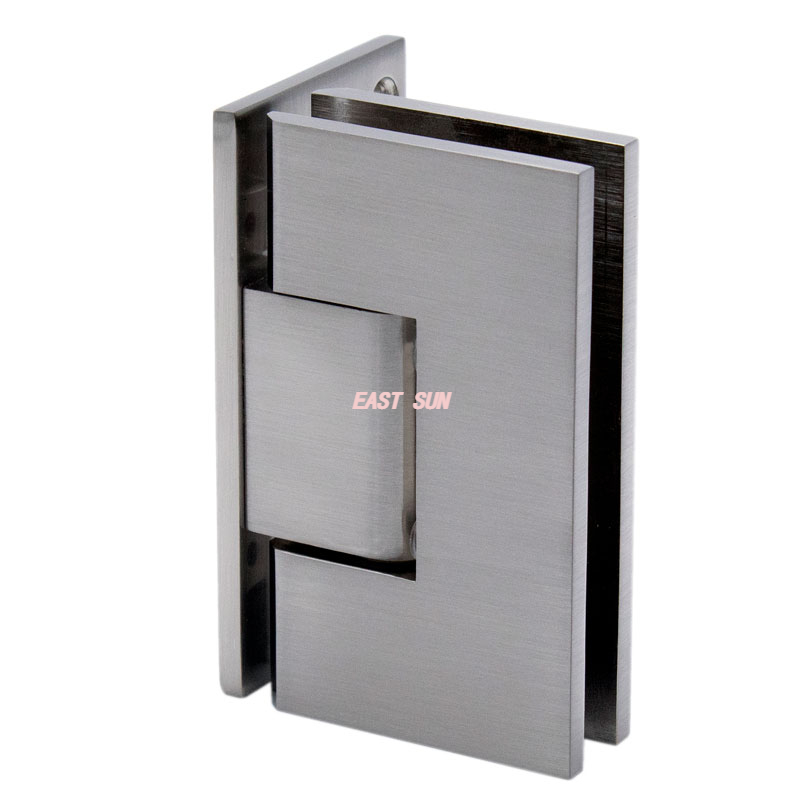

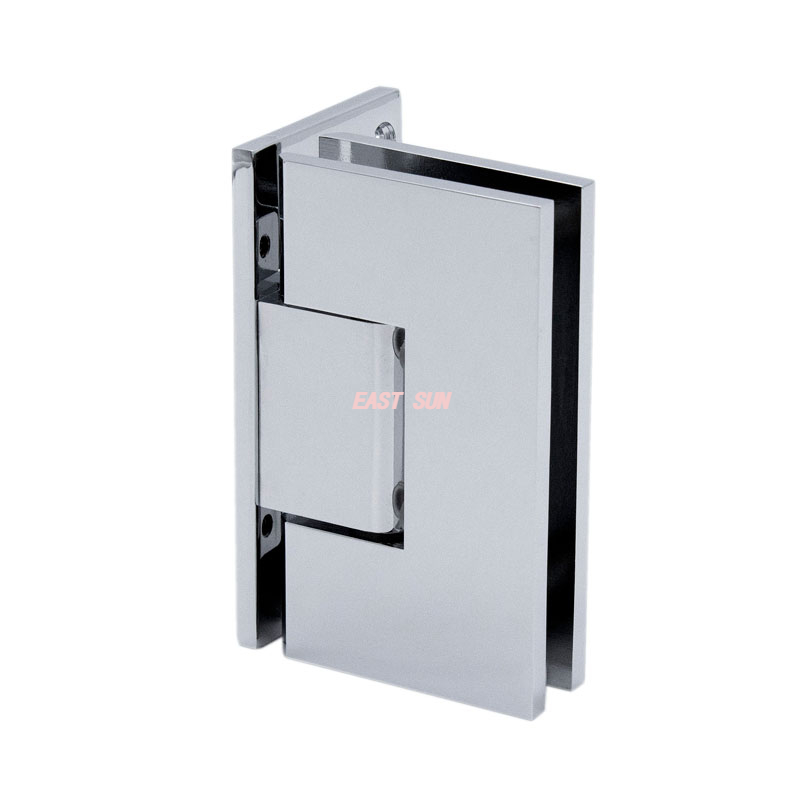

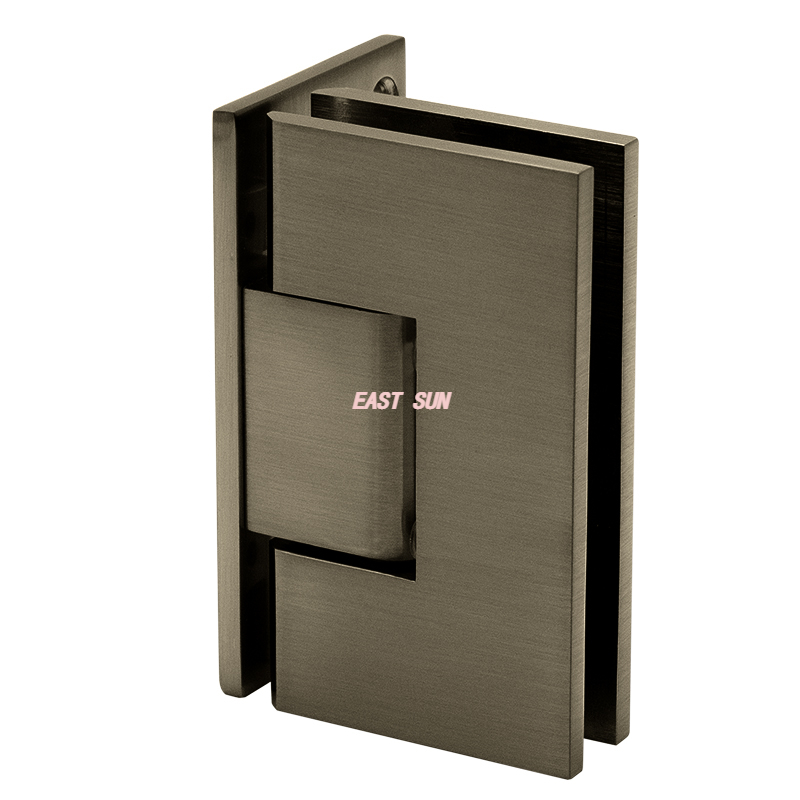

Polished Chrome ,Oil Rubbed Bronze , Brushed Bronze ,Polished Nickel, Brushed Nickel, PVD Gold, Satin Brass



SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required : Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions


Custom finishes are available on request. Contact us
